Quix Lake - User Interface
The Quix Lake User Interface lets you browse, search, and manage datasets persisted into Quix Lake. It surfaces Avro data segments and their Parquet index metadata, making datasets easy to discover and replay.
You can open the catalog from any environment that has a blob storage connection. With permission, you can also explore catalogs from other environments.
Prerequisites
- A Blob storage connection is configured for at least one environment.
- The Quix Lake services are running.
See: Blob storage connections.

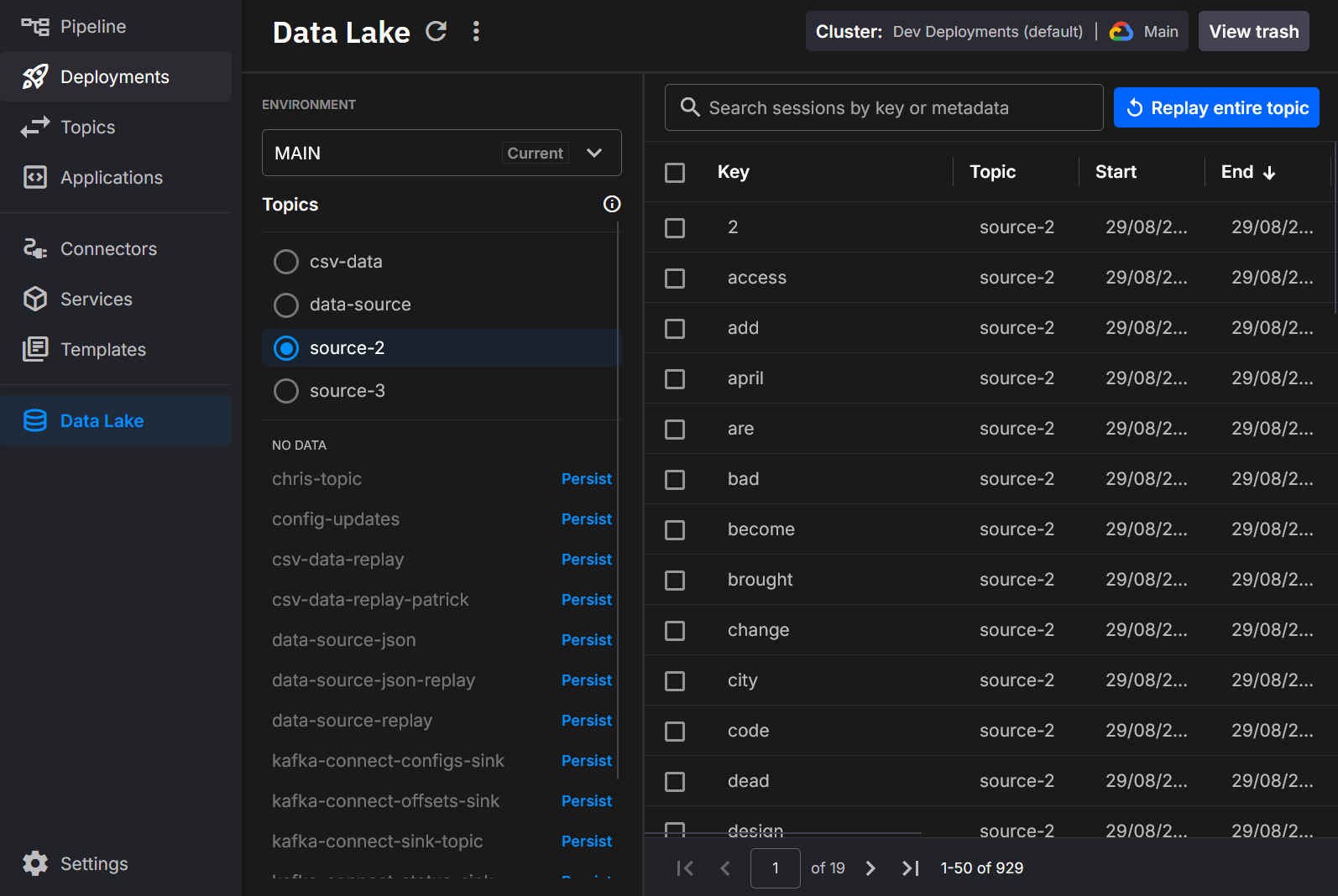

Exploring datasets
Each row represents a persisted session of Kafka messages grouped by topic and key, with an associated time range and metadata. The catalog supports:
- Search by session key or custom metadata
- Filter by topic and environment
- Sort by start, end, duration, size, or record count (click a column header)
- Paginate through results when the list is large

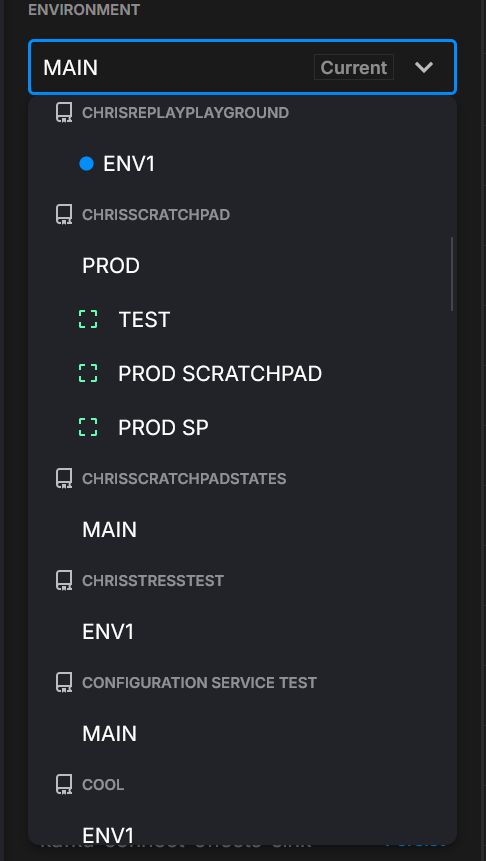

Cross-environment access
Use the Environment switcher to inspect datasets written by other environments you can access (helpful for shared ingestion vs. per-team exploration).

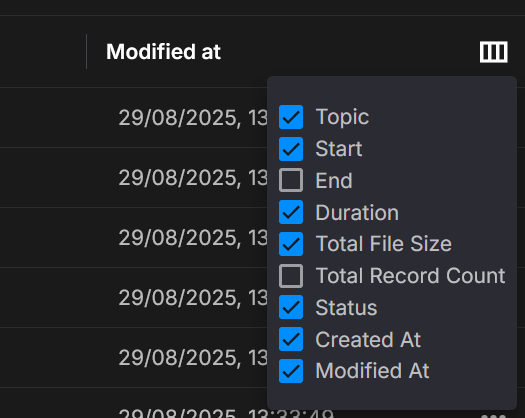

Columns
Choose which columns are shown. Built-ins include Key, Topic, Start/End, Duration, Total file size, Total record count, Status, and Created/Modified. You can also display custom metadata fields when present. Use Select columns to toggle visibility.
Sorting & columns
Click any column header to sort. Use Select columns to show/hide fields for your task (for example, turn on Total record count when validating completeness).

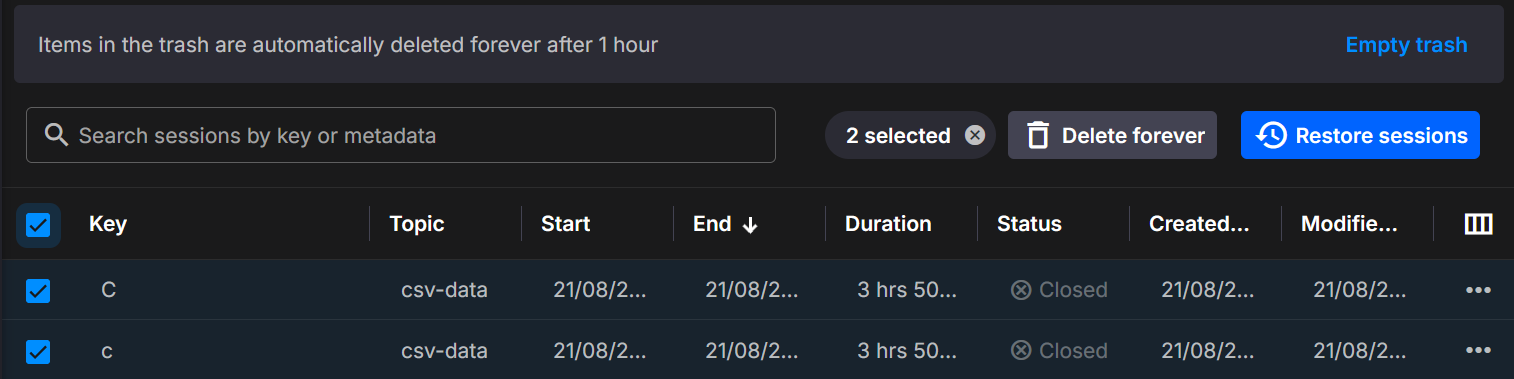

Soft deletion
Deleting a dataset moves it to Trash for a short retention window before permanent deletion. From Trash you can:
- Restore sessions back into the catalog
- Delete forever to purge immediately
Retention window
Items in Trash are automatically and permanently deleted after 1 hour.
Operations
From the catalog you can:
- Inspect datasets across environments

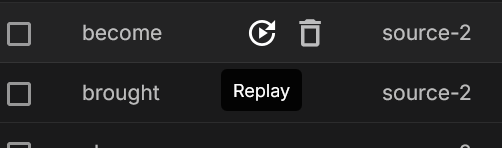

- Trigger Replay from a topic or individual dataset
- Refresh cache to surface newly ingested data sooner
- Open deployment details for the Quix Lake service
Use cases
- Explore persisted datasets by key and time range
- Verify ingestion from topics into blob storage
- Restore or permanently delete sessions
- Prepare datasets for Replay in pipelines
- Integrate with APIs for governance and lineage
