Quix Lake - API

The Quix Lake API powers the Quix Lake User Interface and also exposes a clean surface for your own applications to tag datasets, search, discover files, and perform safe deletes/restores. See the UI page: Quix Lake User Interface.

Connection

Authenticate with a Bearer JWT in the Authorization header.
Most routes are namespaced by workspace and topic.

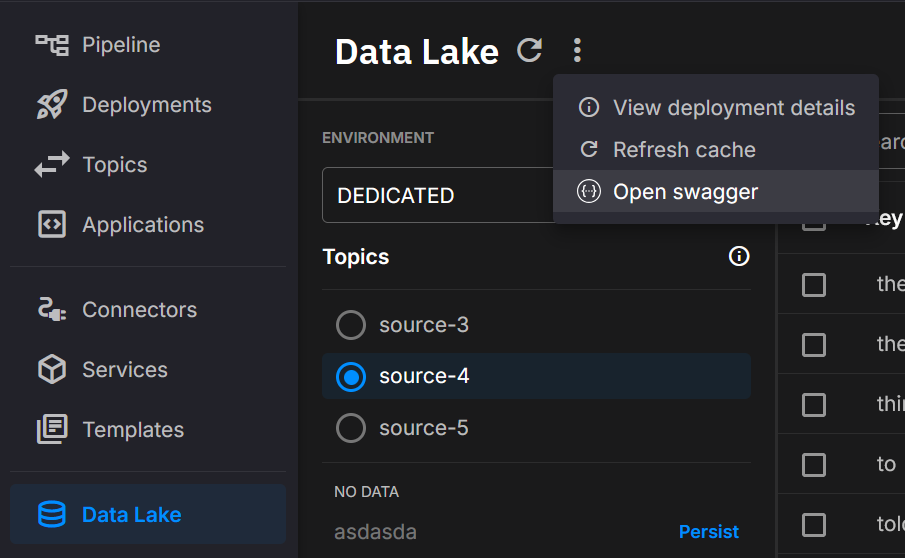

You can open the in-product Swagger from the Catalog header in the UI.

Catalog endpoints

The Catalog endpoints powers discovery features across workspaces and topics. These endpoints let you search indexed stream metadata, explore available topics and keys, and manage cache refreshes to ensure results are up to date.

Use these routes to:

Perform flexible searches (text, fuzzy, prefix/suffix, and time-bound queries).
Enumerate available topics, keys, and metadata facets for filtering.
Keep catalog results fresh with cache refresh operations at the workspace or topic level.
Retrieve workspace and global metadata keys to support consistent UI-driven filtering.

Together, these endpoints back the catalog’s search grid, topic/key lists, and filtering facets.

Search stream metadata

POST /{workspaceId}/{topic}/search Searches stream metadata and returns matches with a total count for paging and analytics. Results mirror the catalog grid. Supports free text, exact/prefix/suffix/fuzzy matching, time windows, sorting, paging, and optional inclusion of all tag fields.

Behavior notes

Results reflect the latest indexed state; use the refresh endpoints below if you need to surface brand-new data immediately.
Soft-deleted items can be included or excluded based on flags in the request.

Refresh workspace caches

POST /{workspaceId}/refresh-cache Refreshes metadata/index caches so newly ingested datasets become visible promptly.

Refresh topic caches

POST /{workspaceId}/{topic}/refresh-cache Refreshes caches scoped to a single topic. Useful after large backfills or when onboarding a new topic.

Get topic keys

GET /{workspaceId}/{topic}/keys Lists all keys for a topic (the same values used by the key filter).

List existing topics

GET /{workspaceId}/topics Returns all topics detected in a workspace so clients can drive topic pickers and filters.

Get workspace topic metadata keys

GET /{workspaceId}/{topic}/metadata-keys Returns distinct metadata keys seen for a topic (drives metadata facets for that topic).

Get workspace metadata keys

GET /{workspaceId}/metadata-keys Returns distinct metadata keys across a workspace.

Get all metadata keys

GET /metadata-keys Returns all known metadata keys across all accessible workspaces.

List accessible workspaces

GET /all-workspaces Returns workspace identifiers that have discoverable data for the caller.

Note

The search response includes a total-count header so clients can page results consistently with the UI.

Here’s a refined introduction for the Data section that aligns in tone and clarity with the improved Catalog section:

Data endpoints

The Data endpoints provides direct visibility into raw storage objects and their temporal ranges. These endpoints are designed for operational use cases such as exports, audits, verification, and impact analysis.

Use these routes to:

Enumerate the exact Avro segment files that make up a selection.
Identify all files associated with a key to preview or audit deletions.
Compute temporal bounds (min/max timestamps and partitions) for sets of keys.

Together, these endpoints give precise, programmatic insight into how cataloged data is physically stored and bounded in time.

Get timestamped file descriptors

GET /data/raw/{workspaceId}/{topic}/files Returns descriptors of Avro segments (paths, counts, offsets, sizes) filtered by window, keys, and partitions. Use this to enumerate exactly which objects comprise a selection.

List files affected by deletion

GET /data/{workspaceId}/{topic}/{key}/all-files Returns every storage path that would be touched by deleting a specific key. Helpful for previews, audits, or impact analysis.

Compute temporal bounds for keys

POST /metadata/{workspaceId}/{topic}/range-info Reports minimum/maximum timestamps and observed partitions for a set of keys. Useful for building sensible default windows.

Tip

A common flow is to use search to find candidate keys, then use files to enumerate exact object paths.

Data Deletion endpoints

The Data Deletion endpoints supports safe lifecycle management of cataloged data. By default, deletions are soft, preserving underlying files and enabling recovery. When required, hard deletes can permanently remove both metadata and storage objects.

Use these routes to:

Delete metadata and files for a single key or multiple keys (soft or hard).
Restore streams that were previously soft-deleted, individually or in batches.

These operations ensure controlled data cleanup while supporting compliance and recovery workflows.

Delete metadata/files for a single key

DELETE /data/{workspaceId}/{topic}/{key} Marks or permanently removes data for one key depending on the delete mode.

Batch delete metadata/files

POST /data/{workspaceId}/{topic}/delete Marks or permanently removes data for multiple keys in one call.

Restore a soft-deleted stream

POST /data/{workspaceId}/{topic}/{key}/restore Clears the soft-delete marker for a single key.

Batch restore soft-deleted streams

POST /data/{workspaceId}/{topic}/restore Clears soft-delete markers for multiple keys.

Warning

Use hard delete only when retention and compliance requirements allow it.

Metadata endpoints

The Metadata endpoints lets you enrich datasets with custom key/value properties and query them later for grouping, filtering, lineage, and auditing. This is especially useful when working with datasets produced by the Quix Lake Sink (managed), enabling your applications to attach meaningful business or operational context.

Typical metadata examples include:

Machine or device identifiers
Sensor calibration ranges
Driver, batch, or run identifiers
Experiment tags or quality tiers
Flattened JSON values

Use these routes to:

Add or update metadata properties for a key.
Retrieve all metadata associated with a key.
Soft-delete all metadata for a key, or selectively remove specific properties.

These operations provide a lightweight but powerful mechanism for managing dataset context across both API and UI.

Upsert metadata entries

PATCH /metadata/{workspaceId}/{topic}/{key} Adds new properties or updates existing ones for a key. Idempotent and safe to call frequently from your systems.

Get metadata for a key

GET /metadata/{workspaceId}/{topic}/{key} Returns all properties associated with a key for verification, lineage, and governance.

Soft-delete all metadata for a key

DELETE /metadata/{workspaceId}/{topic}/{key} Marks all metadata entries for a key as deleted without touching raw files.

Delete specific metadata keys

POST /metadata/{workspaceId}/{topic}/{key}/delete Removes only the listed property names.

Tip

When searching, you can request the full tag set per result to drive rules without extra reads.

Security

Authenticate with Bearer JWT.
Authorization is enforced per workspace.
