Dynamic Configuration Manager

The Dynamic Configuration Manager is a managed service for handling large, versioned configuration files related to devices, sensors, or physical assets.

These configurations often change in real time (e.g., updates to equipment parameters, IoT sensor mappings, or lab/test system setups), but are too large to send through Kafka directly.

Instead of streaming entire configuration payloads, the service:

Stores configurations centrally and versions them.
Publishes a lightweight Kafka event with only the URL, version, and timestamp of the new configuration.
Works together with the Quix Streams SDK, which will fetch, cache, and enrich data streams with the appropriate configuration values.

Identifier: DynamicConfiguration

Example YAML

deployments:
- name: Dynamic Configuration Manager
  application: DynamicConfiguration
  version: latest
  deploymentType: Managed
  resources:
    cpu: 200
    memory: 500
    replicas: 1
  configuration:
    # Kafka topic for configuration updates
    topic: config-updates

    # Backing store (MongoDB by default)
    mongoDatabase: quix
    mongoCollection: configuration-api
    mongoHost: mongodb
    mongoPort: 27017
    mongoUser: admin
    mongoPasswordSecret: mongoPasswordSecret

    # Optional settings
    consumerGroup: config-api-v1
    port: 80
    workers: 1
    contentStore: mongo   # mongo | file

Key Capabilities

Stores and versions large configuration files (JSON or Binary).
Emits lightweight Kafka change events (URL + timestamp + version).
Enables real-time enrichment of data streams without sending configs through Kafka.
Designed for physical asset/device configurations.
Provides a simple REST API and embedded UI for browsing/editing configs.
Supports multiple content stores: Mongo (default) or blob/object storage (file mode).
Works seamlessly with the Quix Streams SDK to fetch, cache, and join configs with live data.

How It Works (High-Level)

A new or updated configuration is persisted and versioned in the service.
The service publishes a Kafka event containing metadata (URL, timestamp, version).
Quix Streams SDK consumers subscribe to the topic using join_lookup feature.
Quix Streams SDK downloads the config changes from the API in realtime, caches it locally, and joins it with incoming data streams using JSONPath or custom join logic.

This design makes it possible to use very large configuration files in real time without pushing them directly through Kafka.

Typical Use Cases

IoT sensor mappings that change during operation.
Industrial machinery configurations updated while systems are running.
Laboratory or testing setups requiring dynamic parameter changes.
Any scenario where large configuration files must be applied in real time alongside data streams.

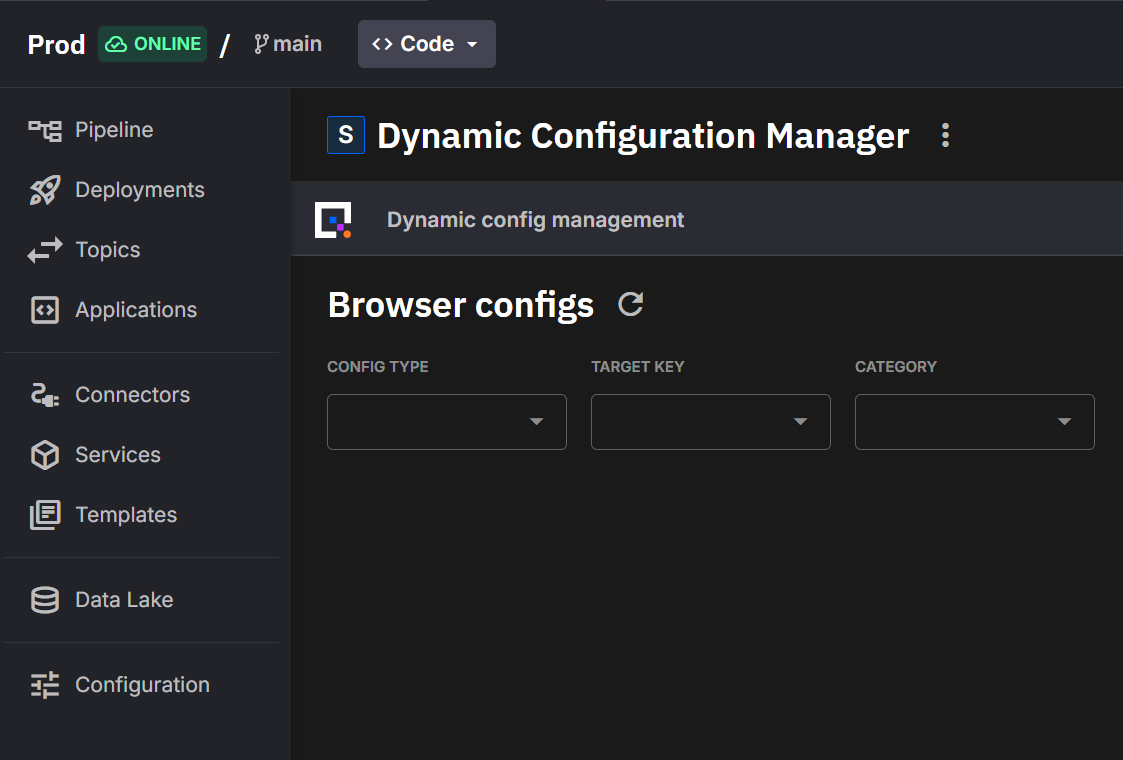

Embedded View (Plugin)

Dynamic Configuration uses the Plugin system implicitly. When you open the deployment in the Portal, Deployment Details renders an embedded view (iframe) for browsing and editing configuration.

Learn more in the Plugin system.

Configuration

Managed services use a simplified configuration block. At deploy time, Quix maps these keys to environment variables and wiring required by the managed image.

Required

topic: Kafka topic for configuration updates
mongoHost: MongoDB host
mongoPort: MongoDB port
mongoUser: MongoDB user
mongoPasswordSecret: Quix secret containing the MongoDB password
mongoDatabase: MongoDB database name
mongoCollection: MongoDB collection name

Optional

consumerGroup: Kafka consumer group identifier (default: config-api-v1)
port: REST API port (default: 80)
workers: Number of worker processes (default: 1)
contentStore: Storage backend for configuration (mongo or file; default: mongo).
In file mode, content is stored in blob/object storage (S3, GCS, Azure Blob, etc.).
Provider-specific credentials are configured via Quix secrets.
In mongo mode, only JSON configuration documents are supported and each configuration payload must be ≤ 16 MB. Use file (blob) mode for larger or non-JSON artifacts.

Blob Storage

This service can leverage a blob storage configured on our platform (see blob storage docs for setup instructions).

The blob storage configuration is automatically injected only when contentStore is set to file.

SDK Integration

The Quix Streams SDK provides built-in functionality to:

Subscribe to configuration change events.
Download and cache the latest configuration from the API.
Join configuration values with live data streams at the right time.

👉 See SDK documentation for details on join_lookup and related features.
