Downsampling

This service reduces the sampling rate of data from one per second to one per minute.

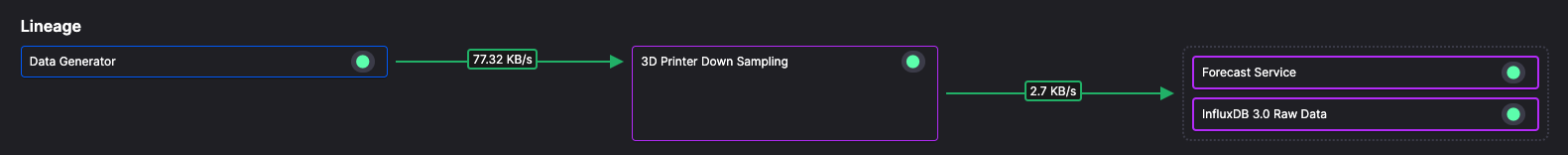

Downsampling pipeline segment

The service uses a buffer to buffer data for one minute before releasing.

# buffer 1 minute of data
buffer_configuration = qx.TimeseriesBufferConfiguration()
buffer_configuration.time_span_in_milliseconds = 1 * 60 * 1000

During the buffering the data is aggregated in the dataframe handler:

def on_dataframe_received_handler(originating_stream: qx.StreamConsumer, df: pd.DataFrame):
    if originating_stream.properties.name is not None and stream_producer.properties.name is None:
        stream_producer.properties.name = originating_stream.properties.name + "-down-sampled"

    # Identify numeric and string columns
    numeric_columns = [col for col in df.columns if not col.startswith('TAG__') and
                        col not in ['time', 'timestamp', 'original_timestamp', 'date_time']]
    string_columns = [col for col in df.columns if col.startswith('TAG__')]

    # Create an aggregation dictionary for numeric columns
    numeric_aggregation = {col: 'mean' for col in numeric_columns}

    # Create an aggregation dictionary for string columns (keeping the last value)
    string_aggregation = {col: 'last' for col in string_columns}

    # Merge the two aggregation dictionaries
    aggregation_dict = {**numeric_aggregation, **string_aggregation}

    df["timestamp"] = pd.to_datetime(df["timestamp"])

    # resample and get the mean of the input data
    df = df.set_index("timestamp").resample('1min').agg(aggregation_dict).reset_index()

    # Send filtered data to output topic
    stream_producer.timeseries.buffer.publish(df)

You can read more about using buffers in the buffer documentation.

The aggregated data is published to the output stream (one stream for each printer).

The output topic for the service is downsampled-3d-printer-data. Other services such as the Forecast service, and the InfluxDB raw data storage service subscribe to this topic.
