Statistical Process Control (SPC)

Understanding Statistical Process Control Fundamentals

SPC is based on the principle that all processes exhibit natural variation, and by understanding and controlling this variation, manufacturers can maintain consistent quality and identify when processes deviate from their normal operating conditions. The methodology distinguishes between common cause variation (inherent in the process) and special cause variation (due to specific, identifiable factors).

Unlike simple quality inspection, SPC provides a proactive approach to quality management by monitoring processes in real-time and identifying trends and patterns that may indicate potential quality issues before they result in defective products.

Core Components of SPC

Control Charts

The primary tool for monitoring process variation and detecting out-of-control conditions:

class ControlChart:
    def __init__(self, chart_type, specification_limits):
        self.chart_type = chart_type
        self.specification_limits = specification_limits
        self.data_points = []
        self.control_limits = None
        self.center_line = None
        self.violation_rules = ViolationRules()

    def calculate_control_limits(self, historical_data):
        """Calculate control limits based on historical data"""
        if self.chart_type == 'X_BAR':
            self.center_line = np.mean(historical_data)
            std_dev = np.std(historical_data)
            self.control_limits = {
                'UCL': self.center_line + 3 * std_dev,
                'LCL': self.center_line - 3 * std_dev
            }
        elif self.chart_type == 'R_CHART':
            self.center_line = np.mean(historical_data)
            self.control_limits = {
                'UCL': self.center_line * 2.114,  # D4 constant for n=5
                'LCL': self.center_line * 0  # D3 constant for n=5
            }
        elif self.chart_type == 'P_CHART':
            self.center_line = np.mean(historical_data)
            std_dev = np.sqrt(self.center_line * (1 - self.center_line) / np.mean([len(x) for x in historical_data]))
            self.control_limits = {
                'UCL': self.center_line + 3 * std_dev,
                'LCL': max(0, self.center_line - 3 * std_dev)
            }

    def add_data_point(self, value, timestamp):
        """Add new data point and check for violations"""
        data_point = DataPoint(value, timestamp)
        self.data_points.append(data_point)

        # Check for control violations
        violations = self.check_control_violations(data_point)

        if violations:
            self.handle_control_violations(violations)

        return violations

    def check_control_violations(self, data_point):
        """Check for various control chart violations"""
        violations = []

        # Rule 1: Point beyond control limits
        if (data_point.value > self.control_limits['UCL'] or
            data_point.value < self.control_limits['LCL']):
            violations.append(ControlViolation('BEYOND_LIMITS', data_point))

        # Rule 2: Seven consecutive points on same side of center line
        if len(self.data_points) >= 7:
            last_seven = self.data_points[-7:]
            if all(p.value > self.center_line for p in last_seven) or \
               all(p.value < self.center_line for p in last_seven):
                violations.append(ControlViolation('SEVEN_CONSECUTIVE', data_point))

        # Rule 3: Seven consecutive points trending up or down
        if len(self.data_points) >= 7:
            last_seven = self.data_points[-7:]
            if self.is_trending_up(last_seven) or self.is_trending_down(last_seven):
                violations.append(ControlViolation('TRENDING', data_point))

        return violations

Process Capability Analysis

Assessing the ability of a process to produce products within specifications:

class ProcessCapabilityAnalyzer:
    def __init__(self, specification_limits):
        self.specification_limits = specification_limits
        self.capability_calculator = CapabilityCalculator()
        self.performance_calculator = PerformanceCalculator()

    def analyze_process_capability(self, process_data):
        """Analyze process capability and performance"""
        # Calculate basic statistics
        mean = np.mean(process_data)
        std_dev = np.std(process_data)

        # Calculate capability indices
        capability_indices = self.calculate_capability_indices(
            mean, std_dev, self.specification_limits
        )

        # Calculate performance indices
        performance_indices = self.calculate_performance_indices(
            process_data, self.specification_limits
        )

        # Generate capability report
        capability_report = CapabilityReport(
            mean=mean,
            std_dev=std_dev,
            capability_indices=capability_indices,
            performance_indices=performance_indices,
            specification_limits=self.specification_limits
        )

        return capability_report

    def calculate_capability_indices(self, mean, std_dev, spec_limits):
        """Calculate Cp, Cpk, and other capability indices"""
        # Cp - Potential capability
        cp = (spec_limits['USL'] - spec_limits['LSL']) / (6 * std_dev)

        # Cpk - Actual capability
        cpu = (spec_limits['USL'] - mean) / (3 * std_dev)
        cpl = (mean - spec_limits['LSL']) / (3 * std_dev)
        cpk = min(cpu, cpl)

        # Cpm - Capability relative to target
        if 'TARGET' in spec_limits:
            target = spec_limits['TARGET']
            cpm = (spec_limits['USL'] - spec_limits['LSL']) / \
                  (6 * np.sqrt(std_dev**2 + (mean - target)**2))
        else:
            cpm = None

        return {
            'Cp': cp,
            'Cpk': cpk,
            'Cpu': cpu,
            'Cpl': cpl,
            'Cpm': cpm
        }

Sampling and Measurement Systems

Implementing systematic sampling strategies for SPC:

class SPCSamplingManager:
    def __init__(self, sampling_config, measurement_systems):
        self.sampling_config = sampling_config
        self.measurement_systems = measurement_systems
        self.sampling_scheduler = SamplingScheduler()
        self.measurement_validator = MeasurementValidator()

    def execute_sampling_plan(self, production_data):
        """Execute sampling plan for SPC monitoring"""
        sampling_results = []

        for sampling_point in self.sampling_config.sampling_points:
            # Determine sample size and frequency
            sample_size = self.determine_sample_size(sampling_point)
            sampling_frequency = self.determine_sampling_frequency(sampling_point)

            # Collect samples
            samples = self.collect_samples(
                production_data, sampling_point, sample_size
            )

            # Validate measurements
            validated_samples = []
            for sample in samples:
                if self.measurement_validator.validate_measurement(sample):
                    validated_samples.append(sample)
                else:
                    self.handle_invalid_measurement(sample)

            # Calculate subgroup statistics
            subgroup_stats = self.calculate_subgroup_statistics(validated_samples)

            sampling_results.append({
                'sampling_point': sampling_point,
                'samples': validated_samples,
                'subgroup_stats': subgroup_stats,
                'timestamp': time.time()
            })

        return sampling_results

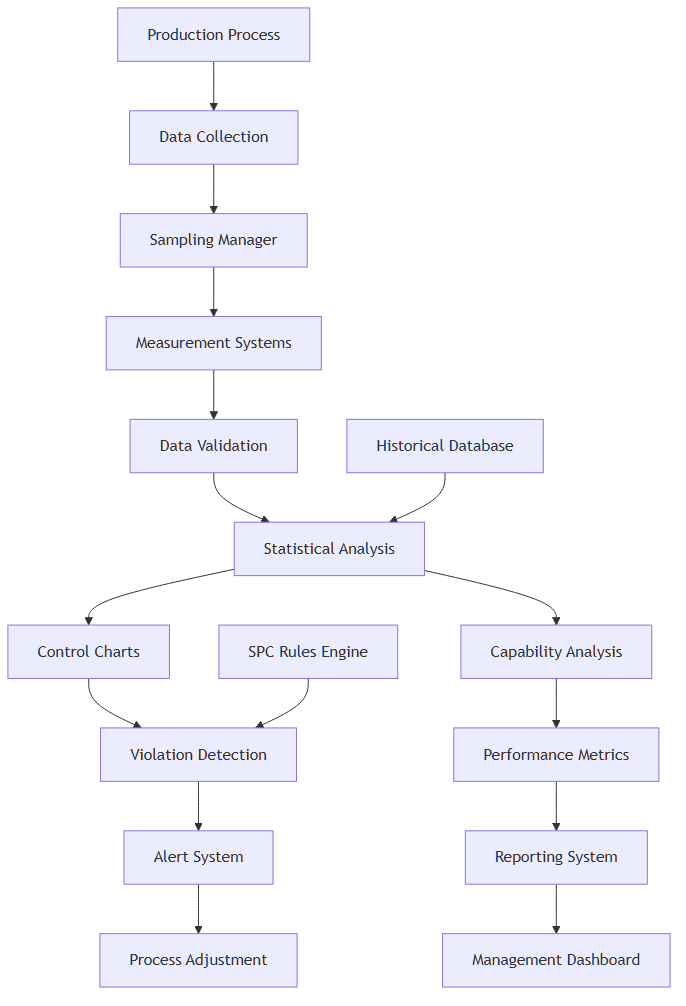

SPC Implementation Architecture

Advanced SPC Techniques

Multivariate Statistical Process Control

Monitoring multiple process variables simultaneously:

class MultivariateSPC:
    def __init__(self, variables, correlation_matrix):
        self.variables = variables
        self.correlation_matrix = correlation_matrix
        self.hotelling_t2 = HotellingT2()
        self.pca_analyzer = PCAAnalyzer()

    def monitor_multivariate_process(self, multivariate_data):
        """Monitor process using multivariate control charts"""
        # Calculate Hotelling's T² statistic
        t2_values = []
        for data_point in multivariate_data:
            t2_value = self.hotelling_t2.calculate_t2(data_point, self.correlation_matrix)
            t2_values.append(t2_value)

        # Check for out-of-control conditions
        control_limit = self.hotelling_t2.calculate_control_limit(
            len(self.variables), len(multivariate_data)
        )

        violations = []
        for i, t2_value in enumerate(t2_values):
            if t2_value > control_limit:
                violations.append(MultivariateViolation(i, t2_value, control_limit))

        # Perform principal component analysis
        pca_results = self.pca_analyzer.analyze_components(multivariate_data)

        return {
            't2_values': t2_values,
            'control_limit': control_limit,
            'violations': violations,
            'pca_results': pca_results
        }

Adaptive Control Limits

Implementing adaptive control limits for non-stationary processes:

class AdaptiveControlLimits:
    def __init__(self, adaptation_algorithm, update_frequency):
        self.adaptation_algorithm = adaptation_algorithm
        self.update_frequency = update_frequency
        self.control_limits_history = []
        self.process_model = ProcessModel()

    def update_control_limits(self, recent_data, current_limits):
        """Update control limits based on recent process behavior"""
        # Analyze recent process behavior
        process_analysis = self.process_model.analyze_process_behavior(recent_data)

        # Determine if adaptation is needed
        if self.adaptation_algorithm.should_adapt(process_analysis, current_limits):
            # Calculate new control limits
            new_limits = self.adaptation_algorithm.calculate_new_limits(
                recent_data, process_analysis
            )

            # Validate new limits
            if self.validate_new_limits(new_limits, current_limits):
                # Update control limits
                self.control_limits_history.append({
                    'timestamp': time.time(),
                    'old_limits': current_limits,
                    'new_limits': new_limits,
                    'reason': process_analysis.adaptation_reason
                })

                return new_limits

        return current_limits

Real-time SPC Implementation

Implementing real-time SPC monitoring:

class RealTimeSPC:
    def __init__(self, control_charts, alert_system):
        self.control_charts = control_charts
        self.alert_system = alert_system
        self.data_stream_processor = DataStreamProcessor()
        self.violation_detector = ViolationDetector()

    def process_real_time_data(self, data_stream):
        """Process real-time data for SPC monitoring"""
        for data_point in data_stream:
            # Process data point through relevant control charts
            for chart_name, chart in self.control_charts.items():
                if chart.applies_to_data(data_point):
                    # Add data point to chart
                    violations = chart.add_data_point(
                        data_point.value, data_point.timestamp
                    )

                    # Handle violations immediately
                    if violations:
                        self.handle_real_time_violations(
                            chart_name, violations, data_point
                        )

                    # Update real-time dashboard
                    self.update_real_time_dashboard(chart_name, chart, data_point)

    def handle_real_time_violations(self, chart_name, violations, data_point):
        """Handle control chart violations in real-time"""
        for violation in violations:
            # Create alert
            alert = self.alert_system.create_spc_alert(
                chart_name, violation, data_point
            )

            # Send immediate notification
            self.alert_system.send_immediate_alert(alert)

            # Log violation
            self.log_spc_violation(chart_name, violation, data_point)

            # Trigger corrective action if configured
            if violation.severity == 'CRITICAL':
                self.trigger_corrective_action(chart_name, violation)

Applications in Industrial Operations

Manufacturing Quality Control

Implementing SPC for manufacturing quality management:

class ManufacturingQualitySPC:
    def __init__(self, quality_characteristics, inspection_points):
        self.quality_characteristics = quality_characteristics
        self.inspection_points = inspection_points
        self.control_charts = {}
        self.capability_analyzer = ProcessCapabilityAnalyzer()

    def implement_manufacturing_spc(self, production_data):
        """Implement SPC for manufacturing quality control"""
        spc_results = {}

        for characteristic in self.quality_characteristics:
            # Create control chart for characteristic
            control_chart = self.create_control_chart(characteristic)

            # Extract relevant data
            characteristic_data = self.extract_characteristic_data(
                production_data, characteristic
            )

            # Calculate control limits
            control_chart.calculate_control_limits(characteristic_data)

            # Monitor current production
            current_violations = []
            for data_point in characteristic_data:
                violations = control_chart.add_data_point(
                    data_point.value, data_point.timestamp
                )
                current_violations.extend(violations)

            # Analyze process capability
            capability_analysis = self.capability_analyzer.analyze_process_capability(
                [dp.value for dp in characteristic_data]
            )

            spc_results[characteristic.name] = {
                'control_chart': control_chart,
                'violations': current_violations,
                'capability_analysis': capability_analysis
            }

        return spc_results

Process Improvement and Optimization

Using SPC for continuous process improvement:

class ProcessImprovementSPC:
    def __init__(self, improvement_methodology):
        self.improvement_methodology = improvement_methodology
        self.variation_analyzer = VariationAnalyzer()
        self.improvement_tracker = ImprovementTracker()

    def analyze_process_improvement_opportunities(self, spc_data):
        """Analyze SPC data for process improvement opportunities"""
        # Analyze sources of variation
        variation_analysis = self.variation_analyzer.analyze_variation_sources(
            spc_data
        )

        # Identify improvement opportunities
        improvement_opportunities = []

        # Check for chronic problems
        chronic_problems = self.identify_chronic_problems(spc_data)
        for problem in chronic_problems:
            opportunity = ImprovementOpportunity(
                type='CHRONIC_PROBLEM',
                description=problem.description,
                potential_impact=problem.impact,
                recommended_actions=problem.recommended_actions
            )
            improvement_opportunities.append(opportunity)

        # Check for process capability issues
        capability_issues = self.identify_capability_issues(spc_data)
        for issue in capability_issues:
            opportunity = ImprovementOpportunity(
                type='CAPABILITY_ISSUE',
                description=issue.description,
                potential_impact=issue.impact,
                recommended_actions=issue.recommended_actions
            )
            improvement_opportunities.append(opportunity)

        return {
            'variation_analysis': variation_analysis,
            'improvement_opportunities': improvement_opportunities,
            'priority_ranking': self.rank_improvement_opportunities(
                improvement_opportunities
            )
        }

Best Practices for SPC Implementation

1. Establish Proper Sampling Strategies

Implement systematic sampling that represents the process:

class SPCSamplingStrategy:
    def __init__(self, process_characteristics):
        self.process_characteristics = process_characteristics
        self.sampling_optimizer = SamplingOptimizer()
        self.cost_calculator = CostCalculator()

    def optimize_sampling_strategy(self, quality_requirements, cost_constraints):
        """Optimize sampling strategy for SPC"""
        # Calculate optimal sample size
        optimal_sample_size = self.sampling_optimizer.calculate_optimal_sample_size(
            quality_requirements, self.process_characteristics
        )

        # Calculate optimal sampling frequency
        optimal_frequency = self.sampling_optimizer.calculate_optimal_frequency(
            quality_requirements, cost_constraints
        )

        # Determine sampling locations
        optimal_locations = self.sampling_optimizer.determine_sampling_locations(
            self.process_characteristics
        )

        return SamplingStrategy(
            sample_size=optimal_sample_size,
            frequency=optimal_frequency,
            locations=optimal_locations
        )

2. Implement Proper Training and Procedures

Ensure proper training for SPC implementation:

class SPCTrainingManager:
    def __init__(self, training_modules, competency_requirements):
        self.training_modules = training_modules
        self.competency_requirements = competency_requirements
        self.training_tracker = TrainingTracker()
        self.competency_assessor = CompetencyAssessor()

    def manage_spc_training(self, personnel):
        """Manage SPC training for personnel"""
        training_results = {}

        for person in personnel:
            # Assess current competency
            current_competency = self.competency_assessor.assess_competency(
                person, self.competency_requirements
            )

            # Identify training needs
            training_needs = self.identify_training_needs(
                current_competency, self.competency_requirements
            )

            # Develop training plan
            training_plan = self.develop_training_plan(training_needs)

            # Track training progress
            self.training_tracker.track_training_progress(person, training_plan)

            training_results[person.id] = {
                'current_competency': current_competency,
                'training_needs': training_needs,
                'training_plan': training_plan
            }

        return training_results

3. Integrate with Manufacturing Systems

Integrate SPC with existing manufacturing systems:

class SPCSystemIntegration:
    def __init__(self, manufacturing_systems, spc_system):
        self.manufacturing_systems = manufacturing_systems
        self.spc_system = spc_system
        self.data_integrator = DataIntegrator()
        self.workflow_integrator = WorkflowIntegrator()

    def integrate_spc_with_manufacturing(self):
        """Integrate SPC with manufacturing systems"""
        # Integrate data flows
        data_integration = self.data_integrator.integrate_data_flows(
            self.manufacturing_systems, self.spc_system
        )

        # Integrate workflows
        workflow_integration = self.workflow_integrator.integrate_workflows(
            self.manufacturing_systems, self.spc_system
        )

        # Configure automated responses
        automated_responses = self.configure_automated_responses()

        return {
            'data_integration': data_integration,
            'workflow_integration': workflow_integration,
            'automated_responses': automated_responses
        }

SPC Reporting and Visualization

SPC Dashboard Implementation

Creating effective SPC dashboards:

class SPCDashboard:
    def __init__(self, control_charts, capability_reports):
        self.control_charts = control_charts
        self.capability_reports = capability_reports
        self.dashboard_generator = DashboardGenerator()
        self.alert_integrator = AlertIntegrator()

    def generate_spc_dashboard(self, time_period):
        """Generate comprehensive SPC dashboard"""
        dashboard_elements = []

        # Create control chart visualizations
        for chart_name, chart in self.control_charts.items():
            chart_visualization = self.dashboard_generator.create_control_chart_viz(
                chart, time_period
            )
            dashboard_elements.append(chart_visualization)

        # Create capability summaries
        capability_summary = self.dashboard_generator.create_capability_summary(
            self.capability_reports
        )
        dashboard_elements.append(capability_summary)

        # Create violation alerts
        violation_alerts = self.alert_integrator.get_recent_violations(time_period)
        dashboard_elements.append(violation_alerts)

        # Create performance metrics
        performance_metrics = self.generate_performance_metrics(time_period)
        dashboard_elements.append(performance_metrics)

        return self.dashboard_generator.assemble_dashboard(dashboard_elements)

Challenges and Solutions

Data Quality and Measurement System Analysis

Ensuring measurement system capability supports SPC requirements.

Process Variation Sources

Identifying and controlling sources of process variation.

Operator Training and Engagement

Ensuring operators understand and properly use SPC tools.

Integration with Existing Systems

Integrating SPC with existing manufacturing and quality systems.

Related Concepts

Statistical Process Control integrates closely with manufacturing intelligence, operational analytics, and industrial automation. It supports predictive maintenance, real-time analytics, and industrial data processing by providing statistical methods for quality control and process optimization.

Modern SPC implementations increasingly leverage machine learning, artificial intelligence, and cloud-native architectures to create more intelligent and adaptive quality control systems.
