State Management
Understanding State Management Fundamentals
State management addresses the challenge of maintaining consistent and accurate representations of system conditions across complex industrial environments. Unlike simple data storage, state management involves tracking dynamic changes, coordinating updates across distributed components, and ensuring consistency in the face of concurrent operations and system failures.
Industrial systems generate continuous state changes from equipment operations, process variations, and control system adjustments. Effective state management ensures these changes are properly tracked, coordinated, and made available to all dependent systems and applications.
Types of State in Industrial Systems
Equipment State
Managing the operational state of industrial equipment and machinery:
class EquipmentStateManager:
def __init__(self, equipment_registry):
self.equipment_registry = equipment_registry
self.state_store = StateStore()
self.state_history = StateHistory()
self.state_validators = StateValidators()
def update_equipment_state(self, equipment_id, new_state):
"""Update equipment state with validation and history tracking"""
# Get current state
current_state = self.state_store.get_state(equipment_id)
# Validate state transition
if not self.state_validators.validate_transition(current_state, new_state):
raise InvalidStateTransitionException(
f"Invalid state transition for {equipment_id}"
)
# Update state
self.state_store.update_state(equipment_id, new_state)
# Record state change in history
self.state_history.record_state_change(
equipment_id, current_state, new_state, time.time()
)
# Notify dependent systems
self.notify_state_change(equipment_id, current_state, new_state)
def get_equipment_state(self, equipment_id):
"""Get current equipment state"""
return self.state_store.get_state(equipment_id)
def get_equipment_state_history(self, equipment_id, time_range):
"""Get equipment state history for specified time range"""
return self.state_history.get_history(equipment_id, time_range)
Process State
Managing the state of industrial processes and workflows:
class ProcessStateManager:
def __init__(self, process_definitions):
self.process_definitions = process_definitions
self.active_processes = {}
self.state_persistence = StatePersistence()
self.workflow_engine = WorkflowEngine()
def start_process(self, process_id, process_type, initial_parameters):
"""Start new process and initialize state"""
process_definition = self.process_definitions[process_type]
# Create initial process state
initial_state = ProcessState(
process_id=process_id,
process_type=process_type,
status='STARTED',
parameters=initial_parameters,
current_step=process_definition.initial_step,
step_data={}
)
# Store active process
self.active_processes[process_id] = initial_state
# Persist state
self.state_persistence.save_process_state(initial_state)
# Start workflow execution
self.workflow_engine.start_workflow(initial_state)
return initial_state
def update_process_state(self, process_id, state_updates):
"""Update process state with new information"""
if process_id not in self.active_processes:
raise ProcessNotFoundException(f"Process {process_id} not found")
process_state = self.active_processes[process_id]
# Apply state updates
for field, value in state_updates.items():
setattr(process_state, field, value)
# Update timestamp
process_state.last_updated = time.time()
# Persist updated state
self.state_persistence.save_process_state(process_state)
# Continue workflow execution
self.workflow_engine.continue_workflow(process_state)
Application State
Managing the state of industrial applications and user interfaces:
class ApplicationStateManager:
def __init__(self, app_config):
self.app_config = app_config
self.user_sessions = {}
self.application_state = ApplicationState()
self.state_synchronizer = StateSynchronizer()
def initialize_user_session(self, user_id, session_config):
"""Initialize user session state"""
session_state = UserSessionState(
user_id=user_id,
session_id=self.generate_session_id(),
permissions=self.get_user_permissions(user_id),
dashboard_config=session_config.get('dashboard_config', {}),
active_views=[],
preferences=self.load_user_preferences(user_id)
)
self.user_sessions[session_state.session_id] = session_state
# Synchronize with global application state
self.state_synchronizer.synchronize_session_state(session_state)
return session_state
def update_session_state(self, session_id, state_updates):
"""Update user session state"""
if session_id not in self.user_sessions:
raise SessionNotFoundException(f"Session {session_id} not found")
session_state = self.user_sessions[session_id]
# Apply updates
for field, value in state_updates.items():
if hasattr(session_state, field):
setattr(session_state, field, value)
# Update timestamp
session_state.last_activity = time.time()
# Synchronize changes
self.state_synchronizer.synchronize_session_state(session_state)

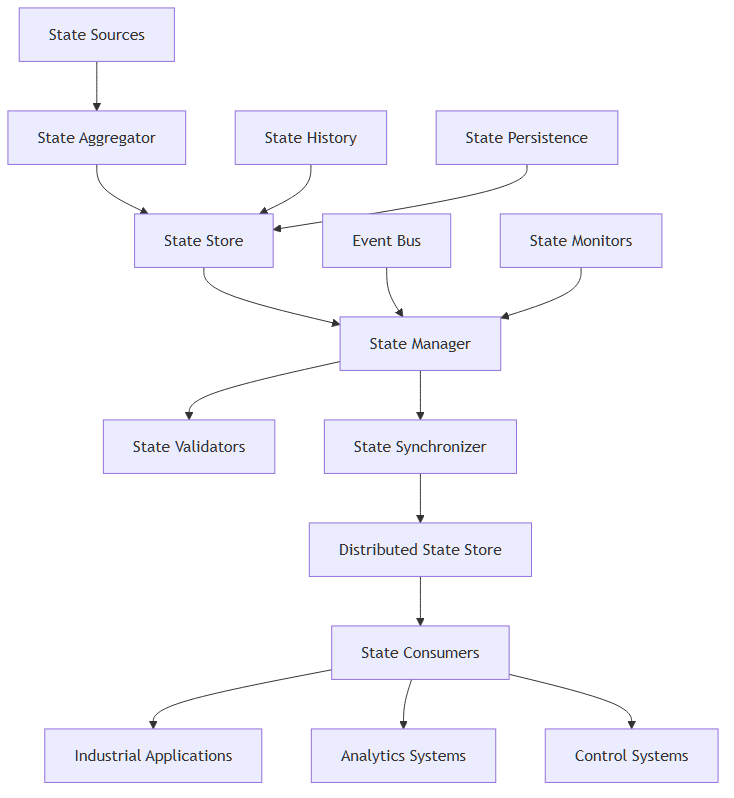

State Management Architecture

State Synchronization Patterns
Event-Driven State Synchronization
Synchronizing state changes through event-driven mechanisms:
class EventDrivenStateSync:
def __init__(self, event_bus, state_subscribers):
self.event_bus = event_bus
self.state_subscribers = state_subscribers
self.event_handlers = {}
self.state_reconciler = StateReconciler()
def publish_state_change(self, state_change_event):
"""Publish state change event to subscribers"""
# Validate event
if not self.validate_state_change_event(state_change_event):
raise InvalidStateChangeEventException("Invalid state change event")
# Publish to event bus
self.event_bus.publish(state_change_event)
# Track published events
self.track_published_event(state_change_event)
def handle_state_change_event(self, event):
"""Handle incoming state change event"""
# Get event handler
handler = self.event_handlers.get(event.type)
if handler:
# Apply state change
handler.apply_state_change(event)
# Verify state consistency
if not self.state_reconciler.verify_consistency():
self.state_reconciler.reconcile_state_conflicts()
else:
self.handle_unknown_event(event)
def subscribe_to_state_changes(self, subscriber_id, state_types):
"""Subscribe to specific state change types"""
subscription = StateSubscription(
subscriber_id=subscriber_id,
state_types=state_types,
callback=self.handle_state_change_event
)
self.state_subscribers[subscriber_id] = subscription
self.event_bus.subscribe(subscription)
Distributed State Coordination
Managing state across distributed industrial systems:
class DistributedStateCoordinator:
def __init__(self, cluster_nodes, consensus_algorithm):
self.cluster_nodes = cluster_nodes
self.consensus_algorithm = consensus_algorithm
self.state_replication = StateReplication()
self.conflict_resolver = ConflictResolver()
def coordinate_state_update(self, state_update):
"""Coordinate state update across distributed nodes"""
# Prepare state update proposal
update_proposal = self.prepare_update_proposal(state_update)
# Achieve consensus across nodes
consensus_result = self.consensus_algorithm.achieve_consensus(
update_proposal, self.cluster_nodes
)
if consensus_result.achieved:
# Apply state update to all nodes
self.apply_distributed_update(consensus_result.agreed_update)
# Replicate state changes
self.state_replication.replicate_state_changes(
consensus_result.agreed_update
)
else:
# Handle consensus failure
self.handle_consensus_failure(update_proposal, consensus_result)
def resolve_state_conflicts(self, conflicting_states):
"""Resolve conflicts in distributed state"""
resolved_state = self.conflict_resolver.resolve_conflicts(
conflicting_states
)
# Propagate resolved state
self.propagate_resolved_state(resolved_state)
return resolved_state
State Persistence and Recovery
State Persistence Strategies
Implementing robust state persistence mechanisms:
class StatePersistenceManager:
def __init__(self, persistence_backends, backup_config):
self.persistence_backends = persistence_backends
self.backup_config = backup_config
self.transaction_log = TransactionLog()
self.recovery_manager = RecoveryManager()
def persist_state(self, state_data, persistence_policy):
"""Persist state data according to policy"""
# Start transaction
transaction = self.transaction_log.start_transaction()
try:
# Persist to primary backend
primary_backend = self.persistence_backends['primary']
primary_backend.save_state(state_data)
# Persist to backup backends if required
if persistence_policy.requires_backup:
for backup_name, backend in self.persistence_backends.items():
if backup_name != 'primary':
backend.save_state(state_data)
# Commit transaction
self.transaction_log.commit_transaction(transaction)
except Exception as e:
# Rollback transaction
self.transaction_log.rollback_transaction(transaction)
raise StatePersistenceException(f"Failed to persist state: {e}")
def recover_state(self, recovery_point):
"""Recover state from persistence layer"""
# Attempt recovery from primary backend
try:
recovered_state = self.persistence_backends['primary'].load_state(
recovery_point
)
# Validate recovered state
if self.validate_recovered_state(recovered_state):
return recovered_state
except Exception as e:
self.log_recovery_failure('primary', e)
# Attempt recovery from backup backends
for backend_name, backend in self.persistence_backends.items():
if backend_name != 'primary':
try:
recovered_state = backend.load_state(recovery_point)
if self.validate_recovered_state(recovered_state):
return recovered_state
except Exception as e:
self.log_recovery_failure(backend_name, e)
raise StateRecoveryException("Failed to recover state from all backends")
State Snapshotting and Checkpointing
Implementing efficient state snapshotting for recovery:
class StateSnapshotManager:
def __init__(self, snapshot_storage, compression_config):
self.snapshot_storage = snapshot_storage
self.compression_config = compression_config
self.snapshot_scheduler = SnapshotScheduler()
self.incremental_tracker = IncrementalTracker()
def create_state_snapshot(self, state_data, snapshot_type='full'):
"""Create state snapshot"""
snapshot_id = self.generate_snapshot_id()
snapshot_metadata = SnapshotMetadata(
snapshot_id=snapshot_id,
timestamp=time.time(),
snapshot_type=snapshot_type,
data_size=len(state_data)
)
if snapshot_type == 'full':
# Create full snapshot
snapshot_data = self.create_full_snapshot(state_data)
else:
# Create incremental snapshot
snapshot_data = self.create_incremental_snapshot(state_data)
# Compress snapshot if configured
if self.compression_config.enabled:
snapshot_data = self.compress_snapshot(snapshot_data)
# Store snapshot
self.snapshot_storage.store_snapshot(
snapshot_id, snapshot_data, snapshot_metadata
)
# Update incremental tracking
self.incremental_tracker.update_baseline(snapshot_id, state_data)
return snapshot_id
def restore_from_snapshot(self, snapshot_id):
"""Restore state from snapshot"""
# Load snapshot metadata
snapshot_metadata = self.snapshot_storage.get_snapshot_metadata(snapshot_id)
# Load snapshot data
snapshot_data = self.snapshot_storage.load_snapshot(snapshot_id)
# Decompress if needed
if snapshot_metadata.compressed:
snapshot_data = self.decompress_snapshot(snapshot_data)
# Restore state based on snapshot type
if snapshot_metadata.snapshot_type == 'full':
restored_state = self.restore_from_full_snapshot(snapshot_data)
else:
# Restore from incremental snapshot
base_snapshot = self.find_base_snapshot(snapshot_id)
restored_state = self.restore_from_incremental_snapshot(
base_snapshot, snapshot_data
)
return restored_state
State Monitoring and Observability
State Health Monitoring
Monitoring state health and consistency:
class StateHealthMonitor:
def __init__(self, health_metrics, alert_thresholds):
self.health_metrics = health_metrics
self.alert_thresholds = alert_thresholds
self.metrics_collector = MetricsCollector()
self.anomaly_detector = AnomalyDetector()
def monitor_state_health(self, state_systems):
"""Monitor health of state management systems"""
health_report = {}
for system_name, system in state_systems.items():
# Collect health metrics
system_metrics = self.metrics_collector.collect_metrics(system)
# Check against thresholds
threshold_violations = self.check_thresholds(
system_metrics, self.alert_thresholds
)
# Detect anomalies
anomalies = self.anomaly_detector.detect_anomalies(system_metrics)
# Generate health status
health_status = self.generate_health_status(
system_metrics, threshold_violations, anomalies
)
health_report[system_name] = {
'metrics': system_metrics,
'threshold_violations': threshold_violations,
'anomalies': anomalies,
'health_status': health_status
}
return health_report
State Audit and Compliance
Implementing state auditing for compliance and troubleshooting:
class StateAuditManager:
def __init__(self, audit_config, compliance_rules):
self.audit_config = audit_config
self.compliance_rules = compliance_rules
self.audit_logger = AuditLogger()
self.compliance_checker = ComplianceChecker()
def audit_state_changes(self, state_changes):
"""Audit state changes for compliance"""
audit_results = []
for change in state_changes:
# Log state change
self.audit_logger.log_state_change(change)
# Check compliance
compliance_result = self.compliance_checker.check_compliance(
change, self.compliance_rules
)
# Record audit result
audit_result = AuditResult(
change_id=change.change_id,
timestamp=change.timestamp,
compliance_status=compliance_result.status,
violations=compliance_result.violations,
recommendations=compliance_result.recommendations
)
audit_results.append(audit_result)
return audit_results
Applications in Industrial Systems
Manufacturing Execution System State
Managing state in manufacturing execution systems:
class MESStateManager:
def __init__(self, production_lines, work_orders):
self.production_lines = production_lines
self.work_orders = work_orders
self.production_state = ProductionState()
self.resource_state = ResourceState()
def manage_production_state(self, production_events):
"""Manage production state based on events"""
for event in production_events:
if event.type == 'WORK_ORDER_STARTED':
self.handle_work_order_start(event)
elif event.type == 'WORK_ORDER_COMPLETED':
self.handle_work_order_completion(event)
elif event.type == 'RESOURCE_ALLOCATED':
self.handle_resource_allocation(event)
elif event.type == 'QUALITY_CHECK_RESULT':
self.handle_quality_check(event)
# Update overall production state
self.update_production_state()
def handle_work_order_start(self, event):
"""Handle work order start event"""
work_order = self.work_orders[event.work_order_id]
# Update work order state
work_order.status = 'IN_PROGRESS'
work_order.start_time = event.timestamp
# Update production line state
production_line = self.production_lines[work_order.production_line_id]
production_line.current_work_order = work_order.id
production_line.status = 'ACTIVE'
# Update resource allocation
self.resource_state.allocate_resources(
work_order.required_resources, work_order.id
)
Control System State Management
Managing state in distributed control systems:
class ControlSystemStateManager:
def __init__(self, control_loops, setpoints):
self.control_loops = control_loops
self.setpoints = setpoints
self.control_state = ControlState()
self.alarm_manager = AlarmManager()
def manage_control_state(self, control_inputs):
"""Manage control system state"""
for loop_id, loop in self.control_loops.items():
# Get current measurements
current_measurement = control_inputs.get(loop_id)
if current_measurement:
# Update loop state
loop.current_value = current_measurement.value
loop.last_update = current_measurement.timestamp
# Check for alarm conditions
if self.check_alarm_conditions(loop, current_measurement):
alarm = self.alarm_manager.create_alarm(loop, current_measurement)
self.alarm_manager.raise_alarm(alarm)
# Update control output
control_output = loop.calculate_control_output(current_measurement)
# Update actuator state
self.update_actuator_state(loop.actuator_id, control_output)
Best Practices
1. Design for Consistency
Implement mechanisms to ensure state consistency across distributed systems:
class ConsistencyManager:
def __init__(self, consistency_model):
self.consistency_model = consistency_model
self.version_vector = VersionVector()
self.conflict_detector = ConflictDetector()
def ensure_consistency(self, state_updates):
"""Ensure state consistency across updates"""
# Check for conflicts
conflicts = self.conflict_detector.detect_conflicts(state_updates)
if conflicts:
# Resolve conflicts based on consistency model
resolved_updates = self.resolve_conflicts(conflicts)
return resolved_updates
return state_updates
2. Implement State Validation
Validate state changes to prevent invalid states:
class StateValidator:
def __init__(self, validation_rules):
self.validation_rules = validation_rules
self.constraint_checker = ConstraintChecker()
def validate_state_transition(self, current_state, new_state):
"""Validate state transition"""
# Check validation rules
for rule in self.validation_rules:
if not rule.validate_transition(current_state, new_state):
raise InvalidStateTransitionException(
f"Validation rule {rule.name} failed"
)
# Check constraints
if not self.constraint_checker.check_constraints(new_state):
raise StateConstraintViolationException(
"State constraints violated"
)
return True
Challenges and Solutions
State Consistency
Maintaining consistency across distributed systems with network partitions and failures.
Performance Optimization
Balancing state accuracy with performance requirements in real-time systems.
Scalability
Managing state for large-scale industrial systems with thousands of components.
Recovery and Resilience
Implementing robust recovery mechanisms for state management systems.
Related Concepts
State management integrates closely with distributed systems design, event-driven architecture, and fault tolerance. It supports industrial automation, manufacturing intelligence, and operational analytics by providing consistent state information across complex industrial systems.
Modern state management increasingly leverages microservices architecture, cloud-native technologies, and event streaming to create more scalable and resilient state management solutions.
What’s a Rich Text element?
The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.
Static and dynamic content editing
A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!
How to customize formatting for each rich text
Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
