Ingestion Schema
Understanding Ingestion Schema Fundamentals
Industrial ingestion schemas serve as data contracts between data producers (sensors, equipment, control systems) and data consumers (analytics systems, databases, dashboards). These schemas define expected data types, required fields, validation constraints, and transformation rules that ensure incoming data meets system requirements.

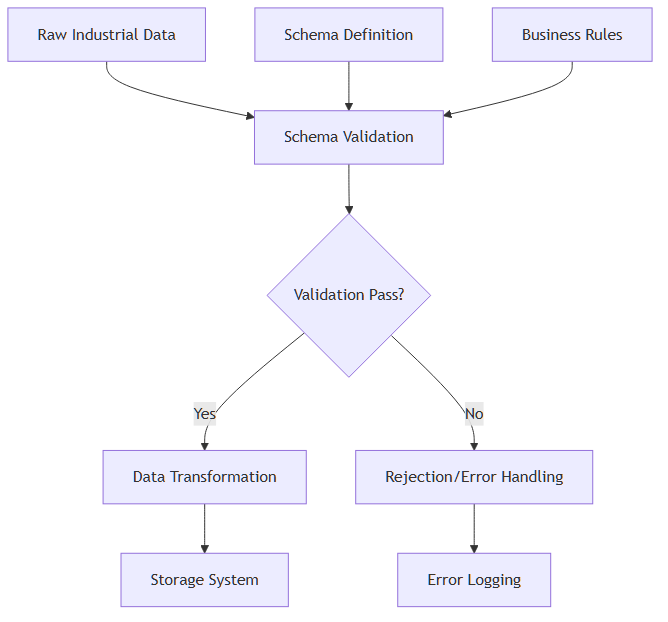

The schema acts as a quality gate, preventing malformed or inconsistent data from entering industrial data systems. This validation is particularly crucial in manufacturing environments where data accuracy directly impacts process control, safety systems, and operational decision-making.
Core Schema Components
Industrial ingestion schemas encompass several essential elements that define data structure and processing requirements:
- Timestamp Specifications: Time format requirements, precision levels, and timezone handling rules
- Measurement Definitions: Data types, units of measure, and acceptable value ranges for sensor readings
- Metadata Requirements: Equipment identifiers, location tags, and operational context information
- Validation Rules: Range checks, format verification, and business logic constraints
- Transformation Instructions: Unit conversions, calculations, and data enrichment operations
Applications in Industrial Data Processing
Equipment Data Standardization
Manufacturing facilities with diverse equipment from multiple vendors require schemas to standardize data formats, ensuring consistent representation of temperatures, pressures, speeds, and operational states across different systems.
Process Control Integration
Industrial process control systems benefit from schemas that validate setpoint data, measurement values, and control parameters, ensuring that only valid data reaches control algorithms and safety systems.
Quality Management Systems
Production quality systems employ schemas to validate inspection data, test results, and product specifications, ensuring that quality metrics maintain consistency and accuracy across production lines.
Schema Enforcement Strategies
Strict Validation
Strict enforcement rejects any data that fails validation criteria, ensuring maximum data quality at the cost of potential data loss. This approach suits critical safety systems and precision control applications.
Lenient Processing
Lenient schemas apply default values, data coercion, or approximation techniques to handle non-conforming data. This approach maximizes data retention while maintaining reasonable quality standards.
Adaptive Validation
Advanced systems employ adaptive schemas that adjust validation criteria based on operational conditions, equipment states, or data source reliability assessments.
Schema Evolution Management
- Version Control: Maintain schema versioning to support backward compatibility and gradual migration
- Field Addition: Design schemas to accommodate new sensor types and measurement parameters
- Type Evolution: Plan for changing data precision requirements and format updates
- Migration Strategies: Implement smooth transitions between schema versions during system updates
- Testing Protocols: Validate schema changes against historical data patterns and edge cases
Implementation Best Practices
```json { "schema_definition": { "version": "1.2", "timestamp": { "type": "ISO8601", "required": true, "precision": "milliseconds" }, "equipment_id": { "type": "string", "pattern": "^[A-Z]{2}\\d{4}$", "required": true }, "measurements": { "temperature": { "type": "float", "unit": "celsius", "range": [-50, 200], "precision": 0.1 }, "pressure": { "type": "float", "unit": "bar", "range": [0, 100], "required": false } } } } ```
Performance Considerations
Industrial ingestion schemas must balance validation thoroughness with processing performance:
- Validation Overhead: Complex validation rules increase processing time per record
- Memory Utilization: Schema parsing and validation consume system memory resources
- Throughput Impact: Extensive validation can reduce overall system ingestion rate
- Error Handling: Failed validation processing requires additional system resources
- Optimization Techniques: Pre-compiled schemas and efficient validation algorithms minimize performance impact
Related Concepts
Ingestion schemas integrate closely with data streaming architectures, ingestion pipelines, and industrial data historians. Understanding these relationships enables comprehensive data architecture design that ensures data quality while maintaining system performance.
Effective ingestion schema design represents a fundamental requirement for industrial data systems, providing the structure and validation necessary to maintain data integrity while enabling flexible system evolution and integration with diverse industrial equipment and control systems.
