Data Governance

Summary

Data governance is a comprehensive framework of policies, procedures, and controls that ensures data quality, security, compliance, and effective utilization across an organization. In industrial data processing and Model Based Design (MBD) environments, data governance provides the foundation for managing complex data ecosystems while ensuring regulatory compliance, maintaining data integrity, and enabling effective decision-making through trusted, high-quality data assets.

Back

Example H2

Understanding Data Governance Fundamentals

Data governance encompasses the people, processes, and technologies required to manage data as a strategic asset. It establishes clear accountability for data quality, defines data ownership and stewardship roles, and implements controls to ensure data meets organizational and regulatory requirements.

In industrial environments, data governance is particularly critical due to the complexity of data sources, regulatory requirements, and the need for high-quality data to support safety-critical operations. Effective governance ensures that data from sensors, control systems, and simulation models is properly managed, secured, and utilized.

Core Components of Data Governance

Data Policies: Defining rules and standards for data management
Data Quality Management: Ensuring data accuracy, completeness, and consistency
Data Security: Protecting data from unauthorized access and breaches
Compliance Management: Meeting regulatory and industry requirements
Data Lifecycle Management: Governing data from creation to disposal

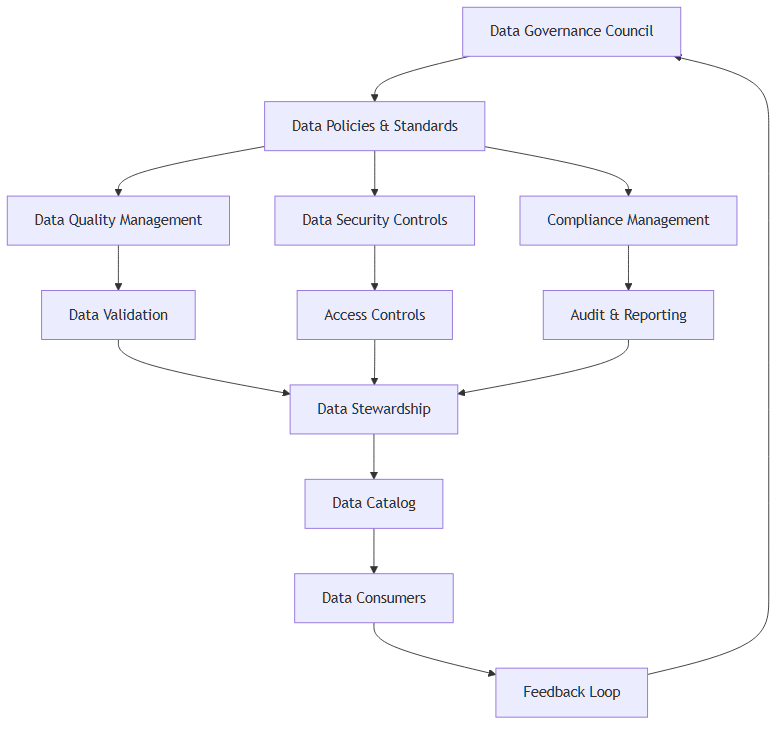

Data Governance Framework

Data Governance Roles and Responsibilities

Data Governance Council

- Executive Oversight: Providing strategic direction and resource allocation

- Policy Development: Establishing organization-wide data governance policies

- Conflict Resolution: Resolving data-related disputes and issues

Data Owners

- Business Accountability: Taking responsibility for specific data domains

- Quality Standards: Defining acceptable data quality levels

- Access Authorization: Approving data access requests

Data Stewards

- Day-to-day Management: Implementing data governance policies

- Quality Monitoring: Continuously assessing data quality

- Issue Resolution: Addressing data quality problems

Data Custodians

- Technical Implementation: Maintaining data infrastructure

- Security Controls: Implementing technical security measures

- Backup and Recovery: Ensuring data availability and recoverability

Implementation Framework

# Example data governance implementation
from datetime import datetime, timedelta
from typing import Dict, List, Optional, Set
from dataclasses import dataclass
from enum import Enum

class DataClassification(Enum):
    PUBLIC = "public"
    INTERNAL = "internal"
    CONFIDENTIAL = "confidential"
    RESTRICTED = "restricted"

class DataQualityRule(Enum):
    COMPLETENESS = "completeness"
    ACCURACY = "accuracy"
    CONSISTENCY = "consistency"
    VALIDITY = "validity"
    TIMELINESS = "timeliness"

@dataclass
class DataAsset:
    asset_id: str
    name: str
    description: str
    owner: str
    steward: str
    classification: DataClassification
    created_date: datetime
    last_updated: datetime
    retention_period: timedelta
    quality_rules: List[DataQualityRule]
    compliance_tags: Set[str]

class DataGovernanceSystem:
    def __init__(self):
        self.data_assets: Dict[str, DataAsset] = {}
        self.access_policies: Dict[str, Dict] = {}
        self.quality_reports: List[Dict] = []
        self.compliance_audits: List[Dict] = []

    def register_data_asset(self, asset: DataAsset) -> bool:
        """Register new data asset with governance system"""
        if asset.asset_id in self.data_assets:
            return False

        # Validate asset meets governance requirements
        if not self._validate_asset_governance(asset):
            return False

        self.data_assets[asset.asset_id] = asset
        self._create_default_access_policy(asset)
        return True

    def _validate_asset_governance(self, asset: DataAsset) -> bool:
        """Validate asset meets governance requirements"""
        # Check required fields
        if not asset.owner or not asset.steward:
            return False

        # Validate classification
        if asset.classification not in DataClassification:
            return False

        # Check retention policy
        if asset.retention_period <= timedelta(0):
            return False

        return True

    def _create_default_access_policy(self, asset: DataAsset):
        """Create default access policy for asset"""
        policy = {
            'asset_id': asset.asset_id,
            'classification': asset.classification.value,
            'authorized_users': [asset.owner, asset.steward],
            'access_restrictions': self._get_access_restrictions(asset.classification),
            'audit_required': asset.classification in [DataClassification.CONFIDENTIAL, DataClassification.RESTRICTED]
        }
        self.access_policies[asset.asset_id] = policy

    def _get_access_restrictions(self, classification: DataClassification) -> Dict[str, bool]:
        """Get access restrictions based on classification"""
        restrictions = {
            DataClassification.PUBLIC: {'authentication_required': False, 'encryption_required': False},
            DataClassification.INTERNAL: {'authentication_required': True, 'encryption_required': False},
            DataClassification.CONFIDENTIAL: {'authentication_required': True, 'encryption_required': True},
            DataClassification.RESTRICTED: {'authentication_required': True, 'encryption_required': True, 'approval_required': True}
        }
        return restrictions.get(classification, {})

    def assess_data_quality(self, asset_id: str, data_sample: Dict) -> Dict:
        """Assess data quality for specific asset"""
        if asset_id not in self.data_assets:
            return {'error': 'Asset not found'}

        asset = self.data_assets[asset_id]
        quality_assessment = {
            'asset_id': asset_id,
            'assessment_date': datetime.now(),
            'quality_scores': {},
            'issues_found': []
        }

        # Evaluate each quality rule
        for rule in asset.quality_rules:
            score = self._evaluate_quality_rule(rule, data_sample)
            quality_assessment['quality_scores'][rule.value] = score

            if score < 0.8:  # Threshold for quality issues
                quality_assessment['issues_found'].append({
                    'rule': rule.value,
                    'score': score,
                    'severity': 'high' if score < 0.5 else 'medium'
                })

        self.quality_reports.append(quality_assessment)
        return quality_assessment

    def _evaluate_quality_rule(self, rule: DataQualityRule, data_sample: Dict) -> float:
        """Evaluate specific quality rule"""
        # Simplified quality rule evaluation
        if rule == DataQualityRule.COMPLETENESS:
            return self._check_completeness(data_sample)
        elif rule == DataQualityRule.ACCURACY:
            return self._check_accuracy(data_sample)
        elif rule == DataQualityRule.CONSISTENCY:
            return self._check_consistency(data_sample)
        elif rule == DataQualityRule.VALIDITY:
            return self._check_validity(data_sample)
        elif rule == DataQualityRule.TIMELINESS:
            return self._check_timeliness(data_sample)

        return 1.0

    def _check_completeness(self, data_sample: Dict) -> float:
        """Check data completeness"""
        total_fields = len(data_sample)
        non_null_fields = sum(1 for value in data_sample.values() if value is not None)
        return non_null_fields / max(total_fields, 1)

    def _check_accuracy(self, data_sample: Dict) -> float:
        """Check data accuracy (simplified)"""
        # In real implementation, this would validate against known correct values
        return 0.95

    def _check_consistency(self, data_sample: Dict) -> float:
        """Check data consistency"""
        # Simplified consistency check
        return 0.90

    def _check_validity(self, data_sample: Dict) -> float:
        """Check data validity"""
        # Simplified validity check
        return 0.85

    def _check_timeliness(self, data_sample: Dict) -> float:
        """Check data timeliness"""
        # Simplified timeliness check
        return 0.92

    def generate_compliance_report(self, regulation: str) -> Dict:
        """Generate compliance report for specific regulation"""
        relevant_assets = [
            asset for asset in self.data_assets.values()
            if regulation in asset.compliance_tags
        ]

        report = {
            'regulation': regulation,
            'report_date': datetime.now(),
            'total_assets': len(relevant_assets),
            'compliant_assets': 0,
            'non_compliant_assets': 0,
            'compliance_issues': []
        }

        for asset in relevant_assets:
            if self._check_compliance(asset, regulation):
                report['compliant_assets'] += 1
            else:
                report['non_compliant_assets'] += 1
                report['compliance_issues'].append({
                    'asset_id': asset.asset_id,
                    'issues': self._identify_compliance_issues(asset, regulation)
                })

        self.compliance_audits.append(report)
        return report

    def _check_compliance(self, asset: DataAsset, regulation: str) -> bool:
        """Check if asset complies with regulation"""
        # Simplified compliance check
        return len(self._identify_compliance_issues(asset, regulation)) == 0

    def _identify_compliance_issues(self, asset: DataAsset, regulation: str) -> List[str]:
        """Identify compliance issues for asset"""
        issues = []

        # Example compliance checks
        if regulation == "GDPR":
            if not asset.retention_period:
                issues.append("Missing retention period")
            if asset.classification == DataClassification.PUBLIC and 'personal_data' in asset.compliance_tags:
                issues.append("Personal data with public classification")

        return issues

Key Governance Areas

Data Quality Management

- Quality Metrics: Defining and measuring data quality dimensions

- Quality Monitoring: Continuous assessment of data quality

- Issue Resolution: Processes for addressing quality problems

- Improvement Programs: Ongoing initiatives to enhance data quality

Data Security and Privacy

- Access Controls: Managing who can access what data

- Encryption: Protecting data at rest and in transit

- Privacy Protection: Ensuring compliance with privacy regulations

- Incident Response: Handling data security breaches

Compliance Management

- Regulatory Tracking: Monitoring applicable regulations

- Audit Preparation: Maintaining audit trails and documentation

- Risk Assessment: Identifying and mitigating compliance risks

- Reporting: Generating compliance reports and attestations

Best Practices

Establish Clear Ownership: Define data owners and stewards for all data assets
Implement Graduated Controls: Apply controls proportionate to data sensitivity
Automate Where Possible: Use technology to enforce governance policies
Measure and Monitor: Track governance effectiveness through metrics
Continuous Improvement: Regularly review and update governance practices

Industrial-Specific Considerations

Manufacturing Data

- Process Control Data: Ensuring quality of critical control parameters

- Quality Data: Maintaining integrity of quality control measurements

- Equipment Data: Governing maintenance and performance data

Safety-Critical Systems

- Reliability Requirements: Ensuring data reliability for safety decisions

- Audit Trails: Maintaining comprehensive audit logs

- Change Control: Managing changes to safety-critical data

Regulatory Compliance

- Industry Standards: Adhering to sector-specific regulations

- Documentation Requirements: Maintaining required documentation

- Validation Protocols: Ensuring data meets validation requirements

Technology Implementation

Data Cataloging

- Metadata Management: Maintaining comprehensive data inventories

- Search and Discovery: Enabling users to find relevant data

- Lineage Tracking: Understanding data origins and transformations

Policy Enforcement

- Automated Controls: Implementing technical policy enforcement

- Monitoring Systems: Tracking policy compliance

- Alert Systems: Notifying of policy violations

Related Concepts

Data governance integrates with data quality, data security, and compliance management. It also supports data integration and data management initiatives.

Data governance provides the foundation for effective data management in industrial environments, ensuring that data assets are properly managed, secured, and utilized while meeting regulatory requirements and supporting business objectives. Effective governance enables organizations to maximize the value of their data while minimizing risks and ensuring compliance with applicable regulations.
