Data Deduplication

Understanding Data Deduplication Fundamentals

Data deduplication operates by identifying identical data segments and storing only one physical copy while maintaining logical references to all instances. This approach is particularly effective in industrial environments where similar data patterns occur frequently, such as recurring sensor measurements, repeated simulation results, or standardized configuration files.

The deduplication process involves analyzing data content, computing hash values or fingerprints, and maintaining a deduplication index that tracks unique data segments. When duplicate data is detected, the system stores only references to the original data, significantly reducing storage requirements.

Core Components of Data Deduplication

1. Fingerprinting Engine: Generates unique identifiers for data blocks or files
2. Deduplication Index: Maintains mapping between fingerprints and data locations
3. Reference Management: Tracks logical references to deduplicated data
4. Garbage Collection: Removes orphaned data blocks when no references remain
5. Integrity Verification: Ensures data consistency and prevents corruption

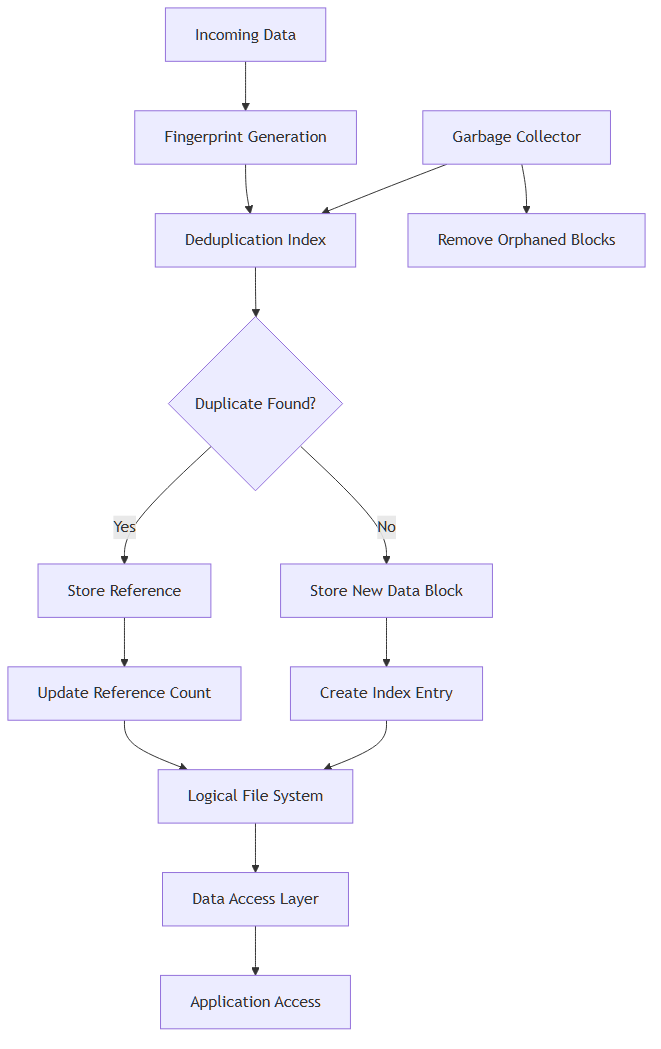

Data Deduplication Architecture

Deduplication Techniques

Block-Level Deduplication

Identifies and eliminates duplicate data blocks of fixed or variable sizes:

# Example block-level deduplication implementation
import hashlib
import os
from typing import Dict, List, Optional, Set
from dataclasses import dataclass
from datetime import datetime

@dataclass
class DataBlock:
    fingerprint: str
    data: bytes
    reference_count: int
    created_at: datetime
    last_accessed: datetime

class BlockLevelDeduplicator:
    def __init__(self, block_size: int = 8192):
        self.block_size = block_size
        self.dedup_index: Dict[str, DataBlock] = {}
        self.file_index: Dict[str, List[str]] = {}  # filename -> list of fingerprints
        self.total_original_size = 0
        self.total_deduplicated_size = 0

    def add_file(self, filename: str, data: bytes) -> Dict[str, any]:
        """Add file to deduplication system"""
        self.total_original_size += len(data)

        # Split data into blocks
        blocks = self._split_into_blocks(data)
        fingerprints = []

        for block in blocks:
            fingerprint = self._generate_fingerprint(block)
            fingerprints.append(fingerprint)

            if fingerprint in self.dedup_index:
                # Duplicate block found - increment reference count
                self.dedup_index[fingerprint].reference_count += 1
                self.dedup_index[fingerprint].last_accessed = datetime.now()
            else:
                # New block - store in index
                self.dedup_index[fingerprint] = DataBlock(
                    fingerprint=fingerprint,
                    data=block,
                    reference_count=1,
                    created_at=datetime.now(),
                    last_accessed=datetime.now()
                )
                self.total_deduplicated_size += len(block)

        # Store file mapping
        self.file_index[filename] = fingerprints

        return {
            'filename': filename,
            'original_size': len(data),
            'unique_blocks': len(set(fingerprints)),
            'total_blocks': len(fingerprints),
            'deduplication_ratio': self.get_deduplication_ratio()
        }

    def retrieve_file(self, filename: str) -> Optional[bytes]:
        """Retrieve file from deduplication system"""
        if filename not in self.file_index:
            return None

        reconstructed_data = b''
        for fingerprint in self.file_index[filename]:
            if fingerprint in self.dedup_index:
                block = self.dedup_index[fingerprint]
                reconstructed_data += block.data
                block.last_accessed = datetime.now()

        return reconstructed_data

    def _split_into_blocks(self, data: bytes) -> List[bytes]:
        """Split data into blocks for deduplication"""
        blocks = []
        for i in range(0, len(data), self.block_size):
            block = data[i:i + self.block_size]
            blocks.append(block)
        return blocks

    def _generate_fingerprint(self, block: bytes) -> str:
        """Generate SHA-256 fingerprint for block"""
        return hashlib.sha256(block).hexdigest()

    def get_deduplication_ratio(self) -> float:
        """Calculate deduplication ratio"""
        if self.total_original_size == 0:
            return 1.0
        return self.total_original_size / self.total_deduplicated_size

    def garbage_collect(self) -> int:
        """Remove blocks with no references"""
        orphaned_blocks = []
        for fingerprint, block in self.dedup_index.items():
            if block.reference_count == 0:
                orphaned_blocks.append(fingerprint)

        removed_size = 0
        for fingerprint in orphaned_blocks:
            removed_size += len(self.dedup_index[fingerprint].data)
            del self.dedup_index[fingerprint]

        self.total_deduplicated_size -= removed_size
        return len(orphaned_blocks)

    def get_statistics(self) -> Dict[str, any]:
        """Get deduplication statistics"""
        return {
            'total_files': len(self.file_index),
            'total_blocks': len(self.dedup_index),
            'original_size': self.total_original_size,
            'deduplicated_size': self.total_deduplicated_size,
            'deduplication_ratio': self.get_deduplication_ratio(),
            'space_saved': self.total_original_size - self.total_deduplicated_size,
            'space_saved_percentage': (1 - self.total_deduplicated_size / max(self.total_original_size, 1)) * 100
        }

File-Level Deduplication

Identifies and eliminates duplicate files based on content comparison:

- Hash-based Identification: Using checksums to identify identical files

- Content-based Comparison: Byte-by-byte comparison for verification

- Metadata Preservation: Maintaining file attributes and timestamps

Variable-Length Deduplication

Uses content-aware chunking to identify duplicate segments regardless of alignment:

- Rabin Fingerprinting: Content-based boundary detection

- Sliding Window: Continuous evaluation of potential chunk boundaries

- Adaptive Chunking: Dynamic chunk size adjustment based on content

Applications in Industrial Data Processing

Sensor Data Optimization

Industrial sensors often produce repetitive measurements, especially during steady-state operations, making deduplication highly effective for reducing storage requirements.

Simulation Result Management

MBD environments generate multiple simulation runs with similar input parameters, resulting in duplicate or near-duplicate result files that benefit from deduplication.

Backup and Archive Optimization

Historical data backups often contain significant redundancy that can be eliminated through deduplication, reducing backup storage requirements and transfer times.

Configuration Management

Industrial systems use standardized configurations that are replicated across multiple devices, creating opportunities for deduplication in configuration management systems.

Performance Considerations

Deduplication Overhead

- CPU Impact: Fingerprint computation and index management consume processing resources

- Memory Usage: Deduplication indexes require memory for efficient operation

- I/O Overhead: Additional disk operations for index maintenance

Optimization Strategies

- Inline vs. Post-process: Balancing real-time deduplication with batch processing

- Index Optimization: Using efficient data structures for large-scale deduplication

- Parallel Processing: Leveraging multiple cores for fingerprint computation

Best Practices

1. Choose Appropriate Block Sizes: Balance deduplication efficiency with processing overhead
2. Implement Robust Garbage Collection: Regularly clean up orphaned data blocks
3. Monitor Deduplication Ratios: Track effectiveness and adjust strategies as needed
4. Ensure Data Integrity: Implement checksums and verification mechanisms
5. Plan for Index Scalability: Design index structures that can handle growing data volumes

Types of Deduplication

Source-Side Deduplication

Performed at the data source before transmission or storage:

- Advantages: Reduced network bandwidth, faster backups

- Disadvantages: Higher source system overhead

Target-Side Deduplication

Performed at the storage system after data arrives:

- Advantages: Reduced source system impact, centralized processing

- Disadvantages: Full data transmission required

Hybrid Deduplication

Combines source-side and target-side approaches for optimal efficiency:

- Metadata Exchange: Sharing deduplication information between systems

- Selective Deduplication: Choosing optimal deduplication location based on data characteristics

Storage Integration

Primary Storage

- Online Deduplication: Real-time deduplication for active data

- Performance Optimization: Balancing deduplication with access speed

- Capacity Planning: Accounting for deduplication in storage sizing

Backup Storage

- Backup Efficiency: Reducing backup storage requirements

- Restore Performance: Optimizing data reconstruction speed

- Retention Management: Handling deduplication across backup retention periods

Related Concepts

Data deduplication integrates with data compression, storage optimization, and data archival strategies. It also supports backup and recovery operations and storage tiering strategies.

Data deduplication provides essential capabilities for optimizing storage utilization in industrial environments where data redundancy is common. Effective deduplication strategies enable organizations to reduce storage costs, improve backup efficiency, and optimize data transfer operations while maintaining data integrity and accessibility for analytical and operational purposes.
