Simulation

Summary

Simulation is the computational modeling and replication of real-world systems and processes to analyze behavior, predict performance, and optimize design parameters without the cost and risk of physical experimentation. In industrial engineering and Model Based Design contexts, simulation enables virtual testing of complex systems including aerodynamics simulation software for fluid dynamics analysis, virtual plant simulation for manufacturing optimization, and computational modeling and simulation for system verification. This methodology is fundamental to Model Based Systems Engineering and supports digital twin implementations through high-fidelity mathematical models that replicate physical system behavior.

Core Fundamentals

Simulation represents the digital approximation of real-world phenomena using mathematical models, computational algorithms, and numerical methods. The fundamental principle involves creating virtual representations that capture essential system characteristics while abstracting away unnecessary complexity to enable efficient analysis and experimentation.

The methodology addresses critical challenges in industrial system development including the high cost of physical prototyping, safety concerns with testing extreme operating conditions, and the need to evaluate system performance across wide operational ranges. Simulation enables engineers to explore design alternatives, optimize parameters, and validate system behavior before committing to physical implementation.

Modern simulation approaches span multiple physics domains including mechanical, thermal, electrical, and fluid dynamics, often requiring multiphysics simulation capabilities that couple different physical phenomena within integrated computational models.

Core Simulation Types and Methods

Industrial simulation encompasses several specialized approaches:

  1. Finite Element Analysis (FEA): Structural analysis and mechanical simulation for stress, strain, and deformation analysis
  2. Computational Fluid Dynamics (CFD): Aerodynamics simulation software and flow analysis for fluid system optimization
  3. Discrete Event Simulation: Manufacturing process modeling and virtual plant simulation for operational analysis
  4. Monte Carlo Simulation: Statistical analysis and uncertainty quantification for system reliability assessment
  5. Real-time Simulation: Hardware-in-the-loop and software-in-the-loop testing for control system validation
  6. Agent-based Modeling: Complex system behavior simulation including supply chain and logistics optimization

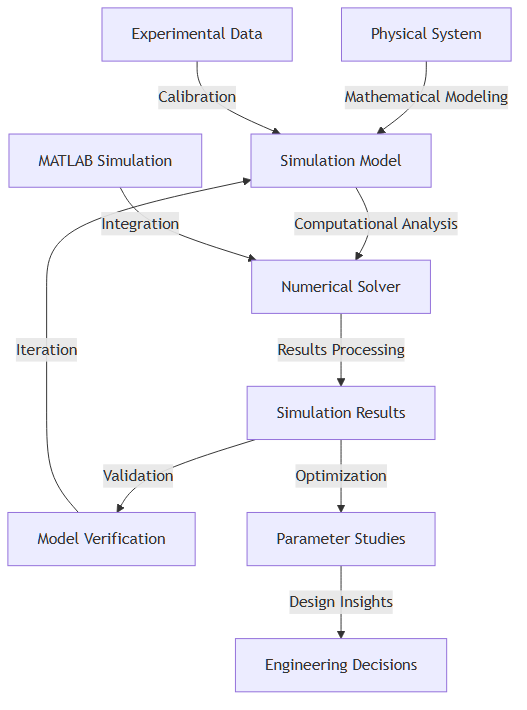

Diagram

Applications and Use Cases

Aerospace and Automotive Design

Aerodynamics simulation software enables detailed analysis of fluid flow patterns, pressure distributions, and performance characteristics for aircraft, vehicles, and industrial equipment. These simulations support design optimization for fuel efficiency, noise reduction, and performance enhancement while reducing the need for expensive wind tunnel testing.

Manufacturing Process Optimization

Virtual plant simulation provides comprehensive analysis of manufacturing operations including production line efficiency, resource utilization, and bottleneck identification. These models enable engineers to optimize plant layouts, evaluate process improvements, and assess the impact of operational changes before implementation.

Control System Development

Simulation supports control system design through virtual testing of algorithms, parameter tuning, and stability analysis. MATLAB simulation environments provide comprehensive tools for control system modeling, analysis, and validation across different operating conditions and disturbance scenarios.

Computational Modeling and Simulation Technologies

High-Performance Computing: Modern simulation applications leverage parallel processing, GPU acceleration, and cloud computing resources to handle complex computational modeling and simulation tasks. These technologies enable detailed analysis of large-scale systems and reduced simulation turnaround times.

Multiphysics Platforms: Integrated simulation environments provide coupled analysis capabilities that address interactions between different physical phenomena. These platforms support comprehensive system analysis that accounts for thermal-structural coupling, fluid-structure interaction, and electromagnetic effects.

Model Reduction Techniques: Advanced algorithms reduce computational complexity while maintaining simulation accuracy through techniques such as proper orthogonal decomposition and reduced-order modeling. These approaches enable real-time simulation capabilities for interactive design and control applications.

Implementation Strategies

Model Development Process: Successful simulation implementation begins with clear definition of analysis objectives, identification of relevant physics, and development of appropriate mathematical models. This process requires close collaboration between simulation engineers and domain experts to ensure model accuracy and relevance.

Verification and Validation: Rigorous model verification ensures computational implementation correctly solves the intended mathematical model, while validation confirms the model accurately represents real-world behavior. This process involves comparison with experimental data, analytical solutions, and established benchmarks.

Integration with Design Workflows: Effective simulation integration requires seamless data exchange between CAD systems, simulation tools, and analysis platforms. Modern workflows leverage parametric modeling and automated mesh generation to enable rapid design iteration and optimization studies.

Best Practices and Considerations

  1. Define clear simulation objectives that align with engineering goals and decision-making requirements
  2. Implement systematic model verification through mesh convergence studies and numerical accuracy assessment
  3. Validate models against experimental data to ensure simulation results accurately represent physical behavior
  4. Document modeling assumptions and limitations to ensure appropriate application of simulation results
  5. Plan for computational resources including hardware requirements, software licensing, and analysis turnaround times
  6. Maintain model configuration management to ensure traceability and reproducibility of simulation results

Performance Considerations

Simulation performance depends critically on computational efficiency, numerical accuracy, and solution convergence characteristics. Large-scale models may require days or weeks of computational time, necessitating careful resource planning and optimization strategies.

Memory requirements for detailed simulations can exceed available hardware capabilities, requiring distributed computing approaches or model simplification techniques. Load balancing and parallel processing optimization help maximize computational resource utilization while minimizing analysis time.

Result accuracy must be balanced against computational cost through appropriate mesh density, time step selection, and convergence criteria. Adaptive refinement techniques help optimize this trade-off by concentrating computational effort in regions requiring high accuracy.

Integration with Model Based Design

Simulation serves as a cornerstone of Model Based Design methodologies by providing virtual validation capabilities throughout the development process. Integration with Hardware-in-the-Loop Testing enables seamless transition from pure simulation to hybrid testing approaches.

The technology supports digital twin implementations by providing the mathematical models necessary for real-time virtual system representation. Simulation models trained on operational data can enhance digital twin accuracy and predictive capabilities.

Related Concepts

Simulation closely integrates with MATLAB and LabVIEW development environments that provide comprehensive modeling and analysis capabilities. The methodology supports Functional Mock-up Unit standards for model exchange and co-simulation applications.

Time Series Analysis techniques help validate simulation models against operational data and support parameter identification for improved model accuracy. Anomaly Detection systems can leverage simulation models to identify unusual system behavior and operational conditions.

Simulation represents an indispensable tool for modern industrial engineering that enables virtual analysis, optimization, and validation of complex systems before physical implementation. Success requires careful attention to model development, verification and validation procedures, and integration with broader engineering design processes to realize the full potential of computational analysis in industrial applications.
