Industrial Automation

Summary

Industrial automation is the use of control systems, information technologies, and computerized equipment to handle different processes and machinery in industrial operations, reducing human intervention and increasing efficiency, safety, and quality. Modern industrial automation integrates sensors, actuators, control systems, and data analytics to create autonomous manufacturing processes that support manufacturing intelligence, operational analytics, and predictive maintenance strategies.

Understanding Industrial Automation Fundamentals

Industrial automation transforms traditional manual manufacturing processes into highly efficient, computer-controlled operations. This transformation involves integrating multiple technologies including sensors, programmable logic controllers (PLCs), human-machine interfaces (HMIs), and advanced analytics to create intelligent manufacturing systems.

Unlike simple mechanization, industrial automation encompasses complete system integration where machines, processes, and information systems work together to optimize production, ensure quality, and maintain safety. Modern automation systems generate vast amounts of data that feed into broader industrial data processing and analytics platforms.

Core Components of Industrial Automation

Sensors and Instrumentation

Collect real-time data from manufacturing processes, equipment, and environmental conditions:

class IndustrialSensor:
    def __init__(self, sensor_id, sensor_type, measurement_range):
        self.sensor_id = sensor_id
        self.sensor_type = sensor_type
        self.measurement_range = measurement_range
        self.calibration_date = datetime.now()
        self.status = 'active'

    def read_value(self):
        """Read current sensor value with validation"""
        raw_value = self.get_raw_reading()

        # Validate reading within acceptable range
        if not self.is_valid_reading(raw_value):
            raise SensorException(f"Invalid reading: {raw_value}")

        return self.apply_calibration(raw_value)

    def is_valid_reading(self, value):
        """Validate sensor reading"""
        return (self.measurement_range['min'] <= value <=
                self.measurement_range['max'])

Control Systems

Programmable logic controllers (PLCs) and distributed control systems (DCS) that execute automation logic:

class PLCController:
    def __init__(self, controller_id, io_modules):
        self.controller_id = controller_id
        self.io_modules = io_modules
        self.program_memory = {}
        self.data_memory = {}
        self.scan_time = 0.01  # 10ms scan cycle

    def execute_program_cycle(self):
        """Execute PLC program cycle"""
        # Input scan
        input_values = self.read_inputs()

        # Program execution
        output_values = self.execute_logic(input_values)

        # Output update
        self.update_outputs(output_values)

        # Update diagnostics
        self.update_diagnostics()

Human-Machine Interface (HMI)

Provides operators with visualization and control capabilities for automated systems:

class HMISystem:
    def __init__(self, screens, controllers):
        self.screens = screens
        self.controllers = controllers
        self.alarm_system = AlarmSystem()
        self.data_historian = DataHistorian()

    def display_process_status(self, process_id):
        """Display current process status"""
        process_data = self.get_process_data(process_id)

        screen_data = {
            'process_variables': process_data['variables'],
            'alarms': self.alarm_system.get_active_alarms(process_id),
            'trends': self.data_historian.get_trends(process_id),
            'control_status': process_data['control_status']
        }

        return self.render_screen(screen_data)

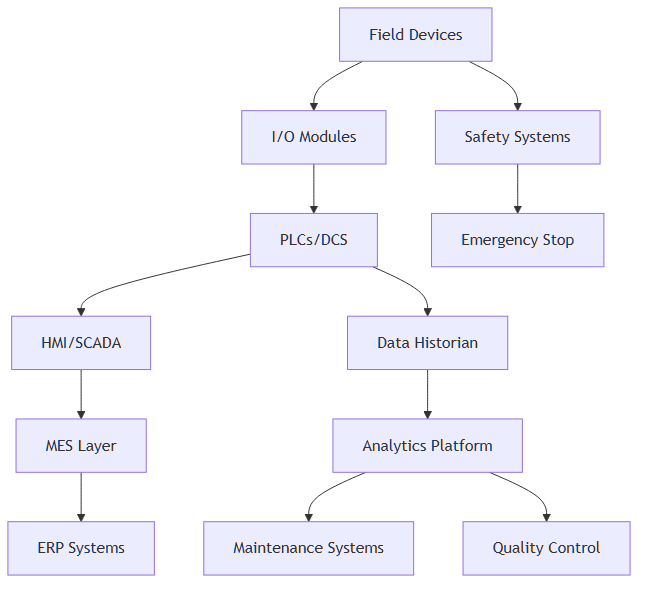

Industrial Automation Architecture

Diagram

Applications in Manufacturing

Process Control

Automated control of continuous manufacturing processes such as chemical production, oil refining, and food processing:

class ProcessController:
    def __init__(self, setpoint, process_variable, controller_params):
        self.setpoint = setpoint
        self.process_variable = process_variable
        self.kp = controller_params['proportional']
        self.ki = controller_params['integral']
        self.kd = controller_params['derivative']
        self.integral_sum = 0
        self.previous_error = 0

    def calculate_pid_output(self, current_value):
        """Calculate PID controller output"""
        error = self.setpoint - current_value

        # Proportional term
        proportional = self.kp * error

        # Integral term
        self.integral_sum += error
        integral = self.ki * self.integral_sum

        # Derivative term
        derivative = self.kd * (error - self.previous_error)

        # Calculate output
        output = proportional + integral + derivative

        self.previous_error = error
        return output

Discrete Manufacturing

Automation of assembly lines, packaging systems, and material handling for discrete products:

class AssemblyLineController:
    def __init__(self, stations, conveyor_system):
        self.stations = stations
        self.conveyor_system = conveyor_system
        self.production_schedule = ProductionSchedule()
        self.quality_system = QualitySystem()

    def process_product(self, product):
        """Process product through assembly line"""
        for station in self.stations:
            # Move product to station
            self.conveyor_system.move_to_station(product, station)

            # Execute station operations
            station.process_product(product)

            # Quality check
            if not self.quality_system.inspect_product(product, station):
                self.handle_quality_failure(product, station)

            # Update production tracking
            self.production_schedule.update_progress(product, station)

Material Handling

Automated storage and retrieval systems, conveyor systems, and robotic material handling:

class AutomatedWarehouse:
    def __init__(self, storage_locations, retrieval_systems):
        self.storage_locations = storage_locations
        self.retrieval_systems = retrieval_systems
        self.inventory_system = InventorySystem()
        self.wms = WarehouseManagementSystem()

    def store_material(self, material, location):
        """Store material in automated warehouse"""
        # Validate storage location
        if not self.is_location_available(location):
            location = self.find_available_location(material)

        # Execute storage operation
        retrieval_system = self.get_nearest_system(location)
        retrieval_system.store_material(material, location)

        # Update inventory
        self.inventory_system.update_inventory(material, location)

Integration with Modern Technologies

Industrial Internet of Things (IIoT)

Modern automation systems integrate with IIoT devices to enhance connectivity and data collection:

class IIoTIntegration:
    def __init__(self, mqtt_broker, devices):
        self.mqtt_client = MQTTClient(mqtt_broker)
        self.devices = devices
        self.data_processor = DataProcessor()

    def collect_device_data(self):
        """Collect data from IIoT devices"""
        for device in self.devices:
            try:
                data = device.get_telemetry()
                self.mqtt_client.publish(
                    topic=f"factory/device/{device.id}",
                    payload=json.dumps(data)
                )
            except DeviceException as e:
                self.handle_device_error(device, e)

Artificial Intelligence and Machine Learning

AI integration enables predictive capabilities and autonomous decision-making:

class AIEnhancedAutomation:
    def __init__(self, ml_models, automation_system):
        self.ml_models = ml_models
        self.automation_system = automation_system
        self.prediction_engine = PredictionEngine()

    def optimize_process_parameters(self, process_data):
        """Use ML to optimize process parameters"""
        # Analyze current process state
        current_state = self.analyze_process_state(process_data)

        # Predict optimal parameters
        optimized_params = self.ml_models['optimization'].predict(current_state)

        # Validate parameters within safe limits
        safe_params = self.validate_parameters(optimized_params)

        # Apply optimized parameters
        self.automation_system.update_parameters(safe_params)

Best Practices for Industrial Automation

1. Implement Comprehensive Safety Systems

- Design fail-safe mechanisms for all critical operations

- Implement emergency stop systems throughout the facility

- Regular safety system testing and validation

2. Ensure Cybersecurity

- Implement network segmentation and access controls

- Regular security assessments and updates

- Employee training on automation security

3. Design for Maintainability

- Implement predictive maintenance strategies

- Design modular systems for easy troubleshooting

- Maintain comprehensive documentation

4. Plan for Scalability

- Design systems that can accommodate future expansion

- Use standardized communication protocols

- Implement modular architectures

Performance Optimization

Real-time Response

Automation systems must meet strict timing requirements:

class RealTimeController:
    def __init__(self, cycle_time=0.01):
        self.cycle_time = cycle_time
        self.task_scheduler = TaskScheduler()
        self.performance_monitor = PerformanceMonitor()

    def execute_control_cycle(self):
        """Execute real-time control cycle"""
        start_time = time.time()

        # Execute time-critical tasks
        self.task_scheduler.execute_critical_tasks()

        # Monitor cycle time
        execution_time = time.time() - start_time
        if execution_time > self.cycle_time:
            self.performance_monitor.log_timing_violation(execution_time)

        # Wait for next cycle
        time.sleep(max(0, self.cycle_time - execution_time))

Data Management

Efficient handling of large volumes of automation data:

class AutomationDataManager:
    def __init__(self, historian, analytics_engine):
        self.historian = historian
        self.analytics_engine = analytics_engine
        self.data_buffer = DataBuffer()

    def process_automation_data(self, data_stream):
        """Process continuous automation data"""
        for data_point in data_stream:
            # Buffer data for batch processing
            self.data_buffer.add(data_point)

            # Check for immediate actions
            if self.requires_immediate_action(data_point):
                self.trigger_immediate_response(data_point)

            # Batch processing when buffer is full
            if self.data_buffer.is_full():
                self.process_batch()

Integration Challenges and Solutions

Legacy System Integration

Connecting modern automation systems with existing legacy equipment:

class LegacyIntegration:
    def __init__(self, legacy_systems, modern_controllers):
        self.legacy_systems = legacy_systems
        self.modern_controllers = modern_controllers
        self.protocol_converters = ProtocolConverters()

    def bridge_legacy_system(self, legacy_system, modern_system):
        """Bridge legacy system with modern automation"""
        # Identify communication protocols
        legacy_protocol = legacy_system.get_protocol()
        modern_protocol = modern_system.get_protocol()

        # Configure protocol converter
        converter = self.protocol_converters.get_converter(
            legacy_protocol, modern_protocol
        )

        # Establish communication bridge
        return converter.create_bridge(legacy_system, modern_system)

Interoperability

Ensuring different automation systems can work together:

class InteroperabilityManager:
    def __init__(self):
        self.protocol_handlers = {
            'modbus': ModbusHandler(),
            'profinet': ProfinetHandler(),
            'ethernet_ip': EthernetIPHandler(),
            'opc_ua': OPCUAHandler()
        }

    def enable_system_communication(self, system_a, system_b):
        """Enable communication between different automation systems"""
        protocol_a = system_a.get_protocol()
        protocol_b = system_b.get_protocol()

        if protocol_a == protocol_b:
            return self.direct_connection(system_a, system_b)
        else:
            return self.protocol_gateway(system_a, system_b)

Future Trends

Edge Computing Integration

Bringing computation closer to automation devices for reduced latency and improved reliability.

Digital Twins

Creating virtual replicas of physical automation systems for simulation and optimization.

Autonomous Systems

Development of self-managing automation systems that can adapt to changing conditions without human intervention.

Related Concepts

Industrial automation integrates closely with industrial data management, operational analytics, and manufacturing intelligence systems. It supports real-time analytics and predictive maintenance strategies while leveraging sensor data and telemetry systems.

Modern automation increasingly incorporates artificial intelligence, machine learning, and digital twin technologies to create more intelligent and adaptive manufacturing systems.
