Backpressure Handling

Summary

Backpressure handling encompasses the strategies and mechanisms used to manage data flow when system components receive data faster than they can process it. This capability is essential for maintaining system stability in industrial environments where sensor data rates can exceed processing capacity, ensuring that real-time analytics systems and data streaming pipelines continue operating reliably under varying load conditions.

Understanding Backpressure Scenarios

Backpressure handling addresses the fundamental challenge of input-output rate mismatches in industrial data systems. When data producers generate information faster than downstream consumers can process it, systems must implement strategies to prevent buffer overflow, memory exhaustion, and ultimately system failure.

In industrial contexts, backpressure situations commonly arise during equipment startups, process transitions, or when multiple production lines simultaneously transmit telemetry data. Effective handling ensures that critical operational data is preserved and processed without compromising system reliability.

Core Handling Strategies

Industrial backpressure handling employs several complementary approaches:

  1. Buffer-based Strategies: Temporary storage of excess data using carefully sized buffers to absorb short-term capacity mismatches
  2. Flow Control Mechanisms: Active regulation of data transmission rates through throttling and rate limiting
  3. Adaptive Processing: Dynamic scaling of processing resources based on current system load
  4. Selective Data Management: Prioritization of critical data streams during capacity constraints

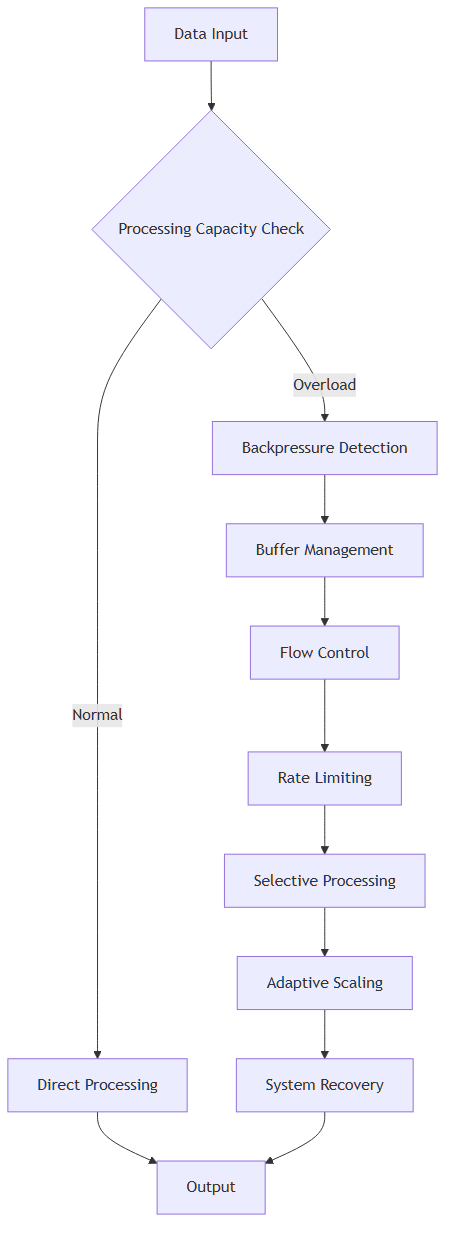

Diagram

Applications in Industrial Systems

Manufacturing Process Control

In Model-Based Design environments, backpressure handling protects control algorithms from data overload during critical manufacturing processes. When process variables change rapidly, handling mechanisms ensure that control systems receive data at manageable rates while preserving process stability.

Sensor Network Management

Industrial IoT networks require robust backpressure handling to manage varying data volumes from distributed sensors. Handling strategies automatically adjust sensor sampling rates and transmission frequencies to match network and processing capacity.

Predictive Maintenance Systems

Predictive maintenance applications depend on continuous equipment telemetry streams. Backpressure handling prevents data loss during maintenance windows while ensuring that critical equipment health indicators are always processed promptly.

Implementation Mechanisms

Effective backpressure handling requires sophisticated monitoring and response mechanisms:

- Queue Depth Monitoring: Continuous tracking of buffer utilization across all system components

- Processing Latency Measurement: Real-time assessment of data processing delays to detect capacity issues

- Resource Utilization Tracking: Monitoring of CPU, memory, and I/O utilization to predict capacity constraints

- Throughput Analysis: Measurement of data processing rates to identify bottlenecks

Best Practices for Industrial Environments

  1. Design for Peak Load Conditions: Size buffers and processing capacity based on maximum expected data volumes, not average loads
  2. Implement Graceful Degradation: Ensure systems maintain essential functionality even under severe backpressure conditions
  3. Use Prioritized Data Flows: Classify data streams by criticality and apply backpressure selectively to preserve essential operations
  4. Create Explicit Feedback Loops: Implement clear communication channels between data producers and consumers for capacity signaling
  5. Monitor System Health Continuously: Deploy comprehensive monitoring to detect backpressure conditions before they cause system failures
  6. Test Under Realistic Conditions: Validate backpressure handling using representative data volumes and surge patterns

Performance Monitoring and Metrics

Successful backpressure handling requires tracking specific performance indicators:

- Input vs. Processing Rates: Comparison of data arrival rates against processing capacity

- Buffer Utilization Levels: Percentage of available buffer space currently in use

- Dropped Message Counts: Number of data points lost due to capacity constraints

- System Response Times: End-to-end latency measurements for data processing

- Recovery Time Metrics: Duration required to return to normal operations after backpressure events

Advanced Handling Techniques

Modern industrial systems employ sophisticated backpressure handling approaches:

- Adaptive Rate Limiting: Dynamic adjustment of transmission rates based on real-time capacity measurements

- Circuit Breaker Patterns: Automatic disconnection of overloaded components to prevent cascade failures

- Load Shedding: Selective dropping of non-critical data to preserve essential system functions

- Resource Pooling: Dynamic allocation of processing resources to handle temporary capacity demands

System Architecture Considerations

Backpressure handling must integrate seamlessly with existing industrial architectures:

- Distributed System Coordination: Handling strategies must work across distributed processing nodes

- Protocol Compatibility: Flow control mechanisms must support standard industrial communication protocols

- Fault Tolerance: Backpressure handling systems must continue operating when individual components fail

- Scalability: Handling mechanisms must scale effectively with system growth and changing requirements

Related Concepts

Backpressure handling integrates closely with load balancing and fault tolerance systems. It supports event-driven architectures and enables reliable batch processing workflows by providing controlled data flow management.

The capability is particularly valuable in industrial environments where telemetry data volumes can vary significantly based on operational conditions, requiring robust handling strategies to maintain system reliability and prevent data loss during peak load periods.
