Relational Database

Summary

A relational database is a structured data management system that organizes information into tables composed of rows and columns, where relationships between different data entities are established through primary and foreign keys. In industrial environments and Model Based Design (MBD) applications, relational databases serve as foundational infrastructure for storing structured operational data, configuration parameters, and metadata that supports manufacturing processes, equipment management, and regulatory compliance requirements.

Back
Example H2
Example H3
Example H4
Example H5
Example H6

Understanding Relational Database Fundamentals

Relational databases follow principles established by Edgar F. Codd in the 1970s, utilizing mathematical set theory and predicate logic to organize data in normalized table structures. Each table represents a specific entity type (such as equipment, sensors, or production orders), with rows containing individual records and columns defining attributes or properties of those entities.

The relational model provides a standardized approach to data organization that ensures consistency, eliminates redundancy, and supports complex querying through Structured Query Language (SQL). This structured approach makes relational databases particularly valuable for industrial applications requiring strict data integrity, audit trails, and complex reporting capabilities.

Core Operational Capabilities

Relational databases provide four fundamental operations that form the foundation of data manipulation:

Select Operations filter data based on specific criteria, enabling retrieval of equipment records meeting particular specifications or sensor readings within defined time ranges.

Project Operations choose specific columns from tables, allowing focused analysis of relevant attributes such as equipment performance metrics or maintenance schedules.

Join Operations combine data from multiple tables based on relationship keys, enabling comprehensive analysis that spans different data entities such as linking equipment performance to maintenance history.

Union Operations merge results from multiple queries, supporting complex analytical scenarios and reporting requirements.

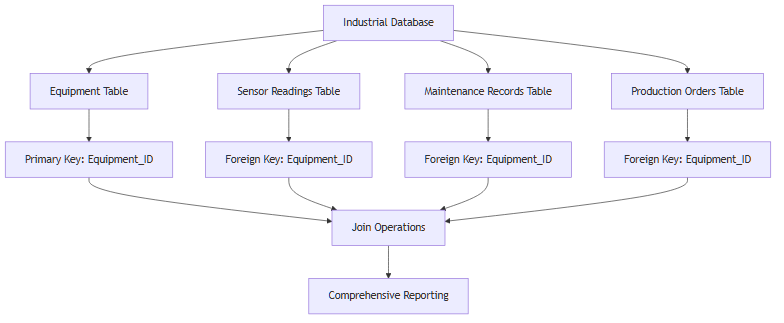

Diagram

Applications in Industrial Environments

Manufacturing Execution Systems (MES)

Relational databases form the backbone of MES implementations, storing production schedules, work instructions, quality specifications, and batch records. The structured nature of relational data ensures traceability from raw materials through finished products, supporting regulatory compliance and quality management systems.

Equipment Management and Maintenance

Industrial facilities utilize relational databases to maintain comprehensive equipment registries, maintenance schedules, spare parts inventories, and service history records. The ability to establish relationships between equipment, components, and maintenance activities supports sophisticated preventive maintenance programs and asset lifecycle management.

Configuration Management for Industrial Systems

Complex industrial systems require careful management of configuration parameters, software versions, and system interdependencies. Relational databases provide the structured storage and relationship management necessary to maintain accurate configuration baselines and support change management processes.

ACID Properties and Data Integrity

Industrial relational databases must maintain strict data integrity through ACID properties:

Atomicity ensures that complex transactions involving multiple data updates either complete entirely or fail completely, preventing partial updates that could compromise data consistency.

Consistency maintains database validity by enforcing business rules, constraints, and referential integrity, ensuring that industrial data remains accurate and reliable.

Isolation manages concurrent access to data, preventing conflicts when multiple users or systems attempt to modify the same records simultaneously.

Durability guarantees that committed transactions remain permanent even in the event of system failures, providing essential reliability for critical industrial data.

Integration with Industrial Data Systems

Time-series Data Relationships

While relational databases excel at structured data management, they often integrate with specialized time-series databases for sensor data storage. The relational database maintains equipment metadata, sensor configurations, and alarm definitions, while time-series systems handle high-frequency measurement data.

Manufacturing Data Hierarchies

Industrial relational databases typically implement hierarchical data models that reflect organizational structures such as enterprise-site-area-line-equipment relationships. This structured approach supports both detailed operational analysis and high-level management reporting.

Performance Considerations for Industrial Applications

Query Optimization

Industrial relational databases require careful optimization for common query patterns including equipment lookup, historical data retrieval, and cross-system reporting. Proper indexing strategies, query plan analysis, and database tuning ensure responsive performance for operational systems.

Concurrent Access Management

Manufacturing environments involve multiple simultaneous users and automated systems accessing the same data resources. Effective concurrency control through transaction isolation levels and locking strategies prevents data conflicts while maintaining system responsiveness.

Backup and Recovery Planning

Critical industrial data requires comprehensive backup and recovery strategies to ensure business continuity. Regular backup schedules, tested recovery procedures, and disaster recovery planning protect against data loss and minimize downtime impacts.

Best Practices for Industrial Implementation

  1. Design normalized data models that eliminate redundancy while supporting complex industrial relationships
  2. Implement comprehensive security policies with role-based access control and audit logging
  3. Establish data validation rules at both application and database levels to ensure data quality
  4. Plan for scalability through proper hardware sizing and database partitioning strategies
  5. Document data relationships and constraints to support system maintenance and future development
  6. Implement regular maintenance procedures including index optimization, statistics updates, and performance monitoring

Integration with Modern Industrial Architectures

Contemporary industrial systems increasingly combine relational databases with data historians for time-series data, edge computing systems for local processing, and machine learning platforms for advanced analytics. This hybrid approach leverages the strengths of relational databases for structured data management while utilizing specialized technologies for high-volume, time-sensitive industrial data processing and analysis.
