Microservices Architecture

Summary

Microservices architecture is a software design approach that structures applications as a collection of small, independent, and loosely coupled services that communicate over well-defined APIs. In industrial environments, microservices architecture enables scalable, maintainable, and resilient systems for industrial data processing, manufacturing intelligence, and operational analytics by breaking down monolithic applications into manageable, specialized components.

Understanding Microservices Architecture Fundamentals

Microservices architecture addresses the challenges of building and maintaining complex industrial software systems by decomposing applications into smaller, focused services that can be developed, deployed, and scaled independently. Unlike monolithic architectures, microservices enable organizations to use different technologies, programming languages, and databases for different services while maintaining system cohesion through well-defined interfaces.

This architectural approach becomes particularly valuable in industrial settings where systems must handle diverse data sources, support multiple user types, and integrate with various operational technologies while maintaining high availability and scalability.

Core Principles of Microservices

Single Responsibility

Each microservice focuses on a specific business capability or domain function:

class SensorDataService:
    """Microservice responsible for sensor data management"""

    def __init__(self, sensor_repository, data_validator):
        self.sensor_repository = sensor_repository
        self.data_validator = data_validator
        self.service_config = ServiceConfig()

    def collect_sensor_data(self, sensor_id, data_batch):
        """Collect and validate sensor data"""
        # Validate incoming data
        if not self.data_validator.validate(data_batch):
            raise InvalidDataException("Sensor data validation failed")

        # Store sensor data
        self.sensor_repository.store_data(sensor_id, data_batch)

        # Publish data availability event
        self.publish_data_event(sensor_id, data_batch)

    def get_sensor_data(self, sensor_id, time_range):
        """Retrieve sensor data for specified time range"""
        return self.sensor_repository.get_data(sensor_id, time_range)

Decentralized Data Management

Each microservice manages its own data store and ensures data consistency:

class EquipmentMaintenanceService:
    """Microservice for equipment maintenance management"""

    def __init__(self, maintenance_db, event_publisher):
        self.maintenance_db = maintenance_db
        self.event_publisher = event_publisher
        self.maintenance_scheduler = MaintenanceScheduler()

    def schedule_maintenance(self, equipment_id, maintenance_type):
        """Schedule maintenance for equipment"""
        # Create maintenance record
        maintenance_record = self.create_maintenance_record(
            equipment_id, maintenance_type
        )

        # Store in local database
        self.maintenance_db.save_maintenance_record(maintenance_record)

        # Publish maintenance scheduled event
        self.event_publisher.publish_event(
            'MaintenanceScheduled',
            equipment_id,
            maintenance_record
        )

        return maintenance_record

    def get_maintenance_history(self, equipment_id):
        """Get maintenance history for equipment"""
        return self.maintenance_db.get_maintenance_history(equipment_id)

Inter-Service Communication

Services communicate through well-defined APIs and messaging systems:

class ServiceCommunicationManager:
    def __init__(self, message_broker, service_registry):
        self.message_broker = message_broker
        self.service_registry = service_registry
        self.circuit_breaker = CircuitBreaker()

    def call_service(self, service_name, method, parameters):
        """Call another microservice method"""
        # Discover service instance
        service_instance = self.service_registry.discover_service(service_name)

        # Apply circuit breaker pattern
        if self.circuit_breaker.is_open(service_instance):
            raise ServiceUnavailableException(f"Service {service_name} unavailable")

        try:
            # Make service call
            response = service_instance.call_method(method, parameters)
            self.circuit_breaker.record_success(service_instance)
            return response
        except Exception as e:
            self.circuit_breaker.record_failure(service_instance)
            raise e

    def publish_event(self, event_type, event_data):
        """Publish event to message broker"""
        self.message_broker.publish(event_type, event_data)

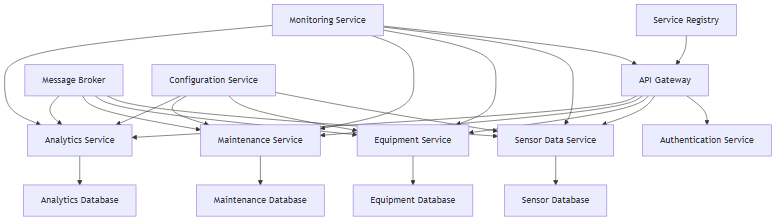

Microservices Architecture Pattern

Diagram

Implementation Patterns for Industrial Systems

API Gateway Pattern

Centralized entry point for all client requests:

class IndustrialAPIGateway:
    def __init__(self, service_registry, load_balancer):
        self.service_registry = service_registry
        self.load_balancer = load_balancer
        self.rate_limiter = RateLimiter()
        self.authentication_service = AuthenticationService()

    def route_request(self, request):
        """Route request to appropriate microservice"""
        # Authenticate request
        if not self.authentication_service.authenticate(request):
            raise AuthenticationException("Authentication failed")

        # Apply rate limiting
        if not self.rate_limiter.allow_request(request):
            raise RateLimitException("Rate limit exceeded")

        # Determine target service
        target_service = self.determine_target_service(request)

        # Load balance request
        service_instance = self.load_balancer.select_instance(target_service)

        # Forward request
        return service_instance.process_request(request)

Event-Driven Communication

Asynchronous communication between services using events:

class EventDrivenCommunication:
    def __init__(self, event_store, event_bus):
        self.event_store = event_store
        self.event_bus = event_bus
        self.event_handlers = {}

    def publish_event(self, event):
        """Publish event to event bus"""
        # Store event
        self.event_store.store_event(event)

        # Publish to event bus
        self.event_bus.publish(event)

    def subscribe_to_event(self, event_type, handler):
        """Subscribe to specific event type"""
        if event_type not in self.event_handlers:
            self.event_handlers[event_type] = []

        self.event_handlers[event_type].append(handler)

    def handle_event(self, event):
        """Handle incoming event"""
        handlers = self.event_handlers.get(event.type, [])

        for handler in handlers:
            try:
                handler.handle(event)
            except Exception as e:
                self.handle_event_processing_error(event, handler, e)

Service Discovery

Automatic discovery and registration of service instances:

class ServiceRegistry:
    def __init__(self, registry_backend):
        self.registry_backend = registry_backend
        self.health_checker = HealthChecker()
        self.service_instances = {}

    def register_service(self, service_name, service_instance):
        """Register service instance"""
        # Validate service instance
        if not self.validate_service_instance(service_instance):
            raise InvalidServiceException("Invalid service instance")

        # Register in backend
        self.registry_backend.register(service_name, service_instance)

        # Start health checking
        self.health_checker.start_monitoring(service_instance)

        # Update local cache
        if service_name not in self.service_instances:
            self.service_instances[service_name] = []
        self.service_instances[service_name].append(service_instance)

    def discover_service(self, service_name):
        """Discover available service instances"""
        # Get healthy instances
        healthy_instances = [
            instance for instance in self.service_instances.get(service_name, [])
            if self.health_checker.is_healthy(instance)
        ]

        if not healthy_instances:
            raise ServiceNotFoundException(f"No healthy instances of {service_name}")

        return healthy_instances

Applications in Industrial Environments

Manufacturing Execution System (MES)

Decomposing MES into specialized microservices:

class ProductionOrderService:
    """Microservice for production order management"""

    def __init__(self, order_repository, workflow_engine):
        self.order_repository = order_repository
        self.workflow_engine = workflow_engine
        self.event_publisher = EventPublisher()

    def create_production_order(self, order_data):
        """Create new production order"""
        # Validate order data
        if not self.validate_order_data(order_data):
            raise InvalidOrderException("Invalid order data")

        # Create order
        order = self.order_repository.create_order(order_data)

        # Start order workflow
        self.workflow_engine.start_workflow(order)

        # Publish order created event
        self.event_publisher.publish_event(
            'ProductionOrderCreated',
            order
        )

        return order

    def update_order_status(self, order_id, status):
        """Update production order status"""
        order = self.order_repository.get_order(order_id)
        order.status = status

        self.order_repository.update_order(order)

        # Publish status change event
        self.event_publisher.publish_event(
            'ProductionOrderStatusChanged',
            order
        )

Industrial Data Processing Platform

Distributed data processing using microservices:

class DataIngestionService:
    """Microservice for data ingestion"""

    def __init__(self, data_validators, stream_processor):
        self.data_validators = data_validators
        self.stream_processor = stream_processor
        self.metrics_collector = MetricsCollector()

    def ingest_data_stream(self, data_stream):
        """Ingest continuous data stream"""
        for data_batch in data_stream:
            try:
                # Validate data
                validated_data = self.validate_data_batch(data_batch)

                # Process data
                processed_data = self.stream_processor.process(validated_data)

                # Forward to downstream services
                self.forward_processed_data(processed_data)

                # Update metrics
                self.metrics_collector.update_ingestion_metrics(data_batch)

            except Exception as e:
                self.handle_ingestion_error(data_batch, e)

Best Practices for Industrial Microservices

1. Design for Failure

Implement comprehensive error handling and resilience patterns:

class ResilientService:
    def __init__(self, service_config):
        self.service_config = service_config
        self.circuit_breaker = CircuitBreaker()
        self.retry_handler = RetryHandler()
        self.fallback_handler = FallbackHandler()

    def call_external_service(self, service_call):
        """Call external service with resilience patterns"""
        try:
            # Apply circuit breaker
            if self.circuit_breaker.is_open():
                return self.fallback_handler.handle_fallback(service_call)

            # Retry on failure
            return self.retry_handler.execute_with_retry(service_call)

        except Exception as e:
            self.circuit_breaker.record_failure()
            return self.fallback_handler.handle_fallback(service_call)

2. Implement Comprehensive Monitoring

Monitor service health, performance, and dependencies:

class ServiceMonitor:
    def __init__(self, metrics_collector, alert_manager):
        self.metrics_collector = metrics_collector
        self.alert_manager = alert_manager
        self.health_endpoints = {}

    def monitor_service_health(self, service):
        """Monitor service health and performance"""
        # Collect health metrics
        health_metrics = self.collect_health_metrics(service)

        # Check performance thresholds
        performance_issues = self.check_performance_thresholds(health_metrics)

        # Generate alerts if needed
        if performance_issues:
            self.alert_manager.generate_alerts(performance_issues)

        return health_metrics

3. Secure Inter-Service Communication

Implement security measures for service communication:

class ServiceSecurity:
    def __init__(self, token_validator, encryption_manager):
        self.token_validator = token_validator
        self.encryption_manager = encryption_manager
        self.access_control = AccessControlManager()

    def secure_service_call(self, service_call):
        """Secure service call with authentication and authorization"""
        # Validate service token
        if not self.token_validator.validate_token(service_call.token):
            raise AuthenticationException("Invalid service token")

        # Check authorization
        if not self.access_control.is_authorized(service_call):
            raise AuthorizationException("Insufficient permissions")

        # Encrypt sensitive data
        if service_call.contains_sensitive_data():
            service_call.data = self.encryption_manager.encrypt(service_call.data)

        return service_call

Challenges and Solutions

Service Orchestration

Coordinating complex workflows across multiple services:

class ServiceOrchestrator:
    def __init__(self, workflow_engine, service_registry):
        self.workflow_engine = workflow_engine
        self.service_registry = service_registry
        self.transaction_manager = TransactionManager()

    def orchestrate_workflow(self, workflow_definition):
        """Orchestrate complex workflow across services"""
        # Create workflow instance
        workflow_instance = self.workflow_engine.create_instance(
            workflow_definition
        )

        # Execute workflow steps
        for step in workflow_definition.steps:
            try:
                service = self.service_registry.discover_service(step.service_name)
                result = service.execute_step(step)

                # Update workflow state
                workflow_instance.update_state(step, result)

            except Exception as e:
                # Handle workflow failure
                self.handle_workflow_failure(workflow_instance, step, e)

Data Consistency

Managing data consistency across distributed services:

class DistributedTransactionManager:
    def __init__(self, transaction_log):
        self.transaction_log = transaction_log
        self.compensation_handlers = {}

    def execute_distributed_transaction(self, transaction_steps):
        """Execute distributed transaction with compensation"""
        transaction_id = self.generate_transaction_id()
        executed_steps = []

        try:
            # Execute all transaction steps
            for step in transaction_steps:
                result = step.execute()
                executed_steps.append((step, result))

                # Log transaction step
                self.transaction_log.log_step(transaction_id, step, result)

            # Commit transaction
            self.commit_transaction(transaction_id)

        except Exception as e:
            # Compensate executed steps
            self.compensate_transaction(transaction_id, executed_steps)
            raise e

Integration with DevOps Practices

Continuous Integration/Continuous Deployment (CI/CD)

Automating microservice deployment:

class MicroserviceDeploymentPipeline:
    def __init__(self, container_registry, orchestrator):
        self.container_registry = container_registry
        self.orchestrator = orchestrator
        self.test_suite = TestSuite()

    def deploy_microservice(self, service_config):
        """Deploy microservice through CI/CD pipeline"""
        # Build service container
        container_image = self.build_container(service_config)

        # Run tests
        test_results = self.test_suite.run_tests(container_image)

        if test_results.all_passed():
            # Push to registry
            self.container_registry.push_image(container_image)

            # Deploy to orchestrator
            self.orchestrator.deploy_service(container_image)
        else:
            raise DeploymentException("Tests failed")

Container Orchestration

Managing microservice containers:

class ContainerOrchestrator:
    def __init__(self, kubernetes_client, service_mesh):
        self.kubernetes_client = kubernetes_client
        self.service_mesh = service_mesh
        self.auto_scaler = AutoScaler()

    def manage_service_deployment(self, service_name, replicas):
        """Manage service deployment and scaling"""
        # Deploy service
        deployment = self.kubernetes_client.create_deployment(
            service_name, replicas
        )

        # Configure service mesh
        self.service_mesh.configure_service(service_name, deployment)

        # Enable auto-scaling
        self.auto_scaler.enable_auto_scaling(service_name, deployment)

        return deployment

Performance Optimization

Caching Strategies

Implementing caching across microservices:

class DistributedCacheManager:
    def __init__(self, cache_cluster, cache_policies):
        self.cache_cluster = cache_cluster
        self.cache_policies = cache_policies
        self.cache_invalidator = CacheInvalidator()

    def cache_service_response(self, service_name, method, parameters, response):
        """Cache service response based on policies"""
        cache_key = self.generate_cache_key(service_name, method, parameters)

        # Get cache policy
        policy = self.cache_policies.get_policy(service_name, method)

        # Cache response if policy allows
        if policy.should_cache(response):
            self.cache_cluster.set(cache_key, response, policy.ttl)

Service Communication Optimization

Optimizing inter-service communication:

class CommunicationOptimizer:
    def __init__(self, connection_pool, compression_manager):
        self.connection_pool = connection_pool
        self.compression_manager = compression_manager
        self.protocol_optimizer = ProtocolOptimizer()

    def optimize_service_call(self, service_call):
        """Optimize service call for performance"""
        # Use connection pooling
        connection = self.connection_pool.get_connection(service_call.target)

        # Compress large payloads
        if service_call.payload_size > self.compression_threshold:
            service_call.data = self.compression_manager.compress(service_call.data)

        # Optimize protocol
        optimized_call = self.protocol_optimizer.optimize(service_call)

        return optimized_call

Related Concepts

Microservices architecture integrates closely with distributed systems design, container orchestration, and cloud-native architecture. It supports event-driven architecture, load balancing, and high availability patterns while enabling industrial automation and manufacturing intelligence systems.

Modern microservices architectures increasingly leverage service mesh technologies, API gateways, and observability tools to create more manageable and resilient distributed systems.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
