High Availability

Summary

High availability (HA) is a system design approach that ensures operational continuity by minimizing downtime and maintaining service accessibility even during failures, maintenance, or unexpected disruptions. In industrial environments, high availability is crucial for maintaining continuous production operations, ensuring safety system reliability, and supporting mission-critical applications such as process control, real-time analytics, and manufacturing intelligence systems.

Back

Example H2

Understanding High Availability Fundamentals

High availability focuses on maximizing system uptime through redundancy, failover mechanisms, and proactive maintenance strategies. Unlike basic reliability measures, HA systems target specific availability percentages, often expressed as "nines" (99.9%, 99.99%, etc.), which directly translate to acceptable downtime thresholds.

In industrial contexts, high availability becomes critical because even brief system outages can result in production stops, safety hazards, and significant financial losses. Manufacturing facilities often require 99.9% or higher availability for critical systems, allowing only minutes of downtime per month.

Availability Metrics and Measurement

Service Level Objectives (SLOs)

Define specific availability targets for different system components:

- 99.9% availability = 8.77 hours of downtime per year

- 99.99% availability = 52.6 minutes of downtime per year

- 99.999% availability = 5.26 minutes of downtime per year

Mean Time Between Failures (MTBF)

Measures the average time between system failures, indicating system reliability.

Mean Time to Recovery (MTTR)

Measures the average time required to restore service after a failure, indicating recovery efficiency.

Recovery Time Objective (RTO)

Defines the maximum acceptable time to restore service after a failure.

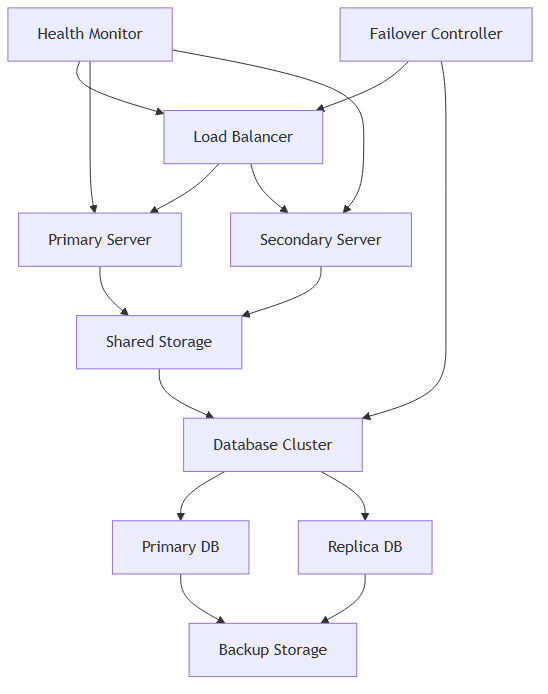

High Availability Architecture Patterns

Implementation Strategies

Active-Active Configuration

Multiple systems simultaneously handle requests, providing both high availability and load distribution:

class ActiveActiveSystem:
    def __init__(self, nodes):
        self.nodes = nodes
        self.health_checker = HealthChecker()
        self.load_balancer = LoadBalancer()

    def process_request(self, request):
        """Process request across active nodes"""
        healthy_nodes = [node for node in self.nodes
                        if self.health_checker.is_healthy(node)]

        if not healthy_nodes:
            raise NoHealthyNodesException("All nodes unavailable")

        selected_node = self.load_balancer.select_node(healthy_nodes)
        return selected_node.process(request)

Active-Passive Configuration

Primary system handles all requests while standby systems remain ready for failover:

class ActivePassiveSystem:
    def __init__(self, primary, standby_nodes):
        self.primary = primary
        self.standby_nodes = standby_nodes
        self.current_active = primary
        self.failover_controller = FailoverController()

    def process_request(self, request):
        """Process request with automatic failover"""
        try:
            return self.current_active.process(request)
        except NodeFailureException:
            self.failover_to_standby()
            return self.current_active.process(request)

    def failover_to_standby(self):
        """Failover to standby node"""
        for standby in self.standby_nodes:
            if self.health_checker.is_healthy(standby):
                self.current_active = standby
                self.failover_controller.promote_to_active(standby)
                return
        raise NoStandbyAvailableException("No healthy standby nodes")

Clustering

Multiple nodes work together to provide high availability through shared resources and coordinated failover:

class ClusterManager:
    def __init__(self, nodes):
        self.nodes = nodes
        self.cluster_state = 'HEALTHY'
        self.quorum_size = (len(nodes) // 2) + 1

    def check_cluster_health(self):
        """Monitor cluster health and quorum"""
        healthy_nodes = [node for node in self.nodes
                        if node.is_healthy()]

        if len(healthy_nodes) >= self.quorum_size:
            self.cluster_state = 'HEALTHY'
            return True
        else:
            self.cluster_state = 'DEGRADED'
            return False

    def elect_leader(self):
        """Elect cluster leader for coordination"""
        healthy_nodes = [node for node in self.nodes
                        if node.is_healthy()]

        if len(healthy_nodes) >= self.quorum_size:
            return max(healthy_nodes, key=lambda x: x.priority)
        return None

Applications in Industrial Systems

Process Control Systems

Industrial control systems implement high availability to ensure continuous monitoring and control of critical processes, preventing safety hazards and production disruptions.

Data Acquisition Systems

High availability data acquisition systems ensure continuous collection of sensor data, preventing data loss that could impact quality control and process optimization.

Manufacturing Execution Systems (MES)

MES systems require high availability to maintain production scheduling, inventory tracking, and quality management operations.

Safety Systems

Safety-critical industrial systems implement high availability to ensure protective functions remain operational during equipment failures.

Best Practices for Industrial High Availability

1. Implement Comprehensive Monitoring

- Monitor system health, performance metrics, and capacity utilization

- Implement predictive monitoring to identify potential failures

- Use distributed monitoring to avoid single points of failure

2. Design for Graceful Degradation

- Identify core functions that must remain operational

- Implement fallback mechanisms for non-critical features

- Plan for reduced capacity operation during failures

3. Automate Failover Processes

- Minimize manual intervention in failover procedures

- Implement automatic health checking and recovery

- Test failover procedures regularly

4. Maintain Geographic Redundancy

- Distribute critical systems across multiple locations

- Implement disaster recovery sites for major failures

- Plan for network connectivity failures

Data Consistency in High Availability Systems

Synchronous Replication

Ensures data consistency across all nodes but may impact performance:

class SynchronousReplication:
    def __init__(self, primary, replicas):
        self.primary = primary
        self.replicas = replicas

    def write_data(self, key, value):
        """Write data synchronously to all replicas"""
        # Write to primary first
        self.primary.write(key, value)

        # Write to all replicas
        for replica in self.replicas:
            replica.write(key, value)

        return True

Asynchronous Replication

Provides better performance but may result in temporary data inconsistency:

class AsynchronousReplication:
    def __init__(self, primary, replicas):
        self.primary = primary
        self.replicas = replicas
        self.replication_queue = Queue()

    def write_data(self, key, value):
        """Write data asynchronously to replicas"""
        # Write to primary immediately
        self.primary.write(key, value)

        # Queue replication to replicas
        for replica in self.replicas:
            self.replication_queue.put((replica, key, value))

        return True

Health Monitoring and Alerting

Health Check Implementation

Continuous monitoring of system components to detect failures:

class HealthMonitor:
    def __init__(self, components):
        self.components = components
        self.health_status = {}
        self.check_interval = 30  # seconds

    def perform_health_check(self):
        """Perform health check on all components"""
        for component in self.components:
            try:
                response_time = component.health_check()
                self.health_status[component.id] = {
                    'status': 'healthy',
                    'response_time': response_time,
                    'last_check': time.time()
                }
            except HealthCheckException:
                self.health_status[component.id] = {
                    'status': 'unhealthy',
                    'last_check': time.time()
                }
                self.trigger_alert(component)

    def trigger_alert(self, component):
        """Trigger alert for failed component"""
        alert_manager.send_alert(
            severity='HIGH',
            message=f"Component {component.id} health check failed",
            component=component.id
        )

Performance Optimization

Load Balancing

Distributes requests across multiple nodes to optimize resource utilization:

class LoadBalancer:
    def __init__(self, nodes):
        self.nodes = nodes
        self.current_index = 0
        self.algorithm = 'round_robin'

    def select_node(self, healthy_nodes):
        """Select node based on load balancing algorithm"""
        if self.algorithm == 'round_robin':
            node = healthy_nodes[self.current_index % len(healthy_nodes)]
            self.current_index += 1
            return node
        elif self.algorithm == 'least_connections':
            return min(healthy_nodes, key=lambda x: x.active_connections)
        elif self.algorithm == 'weighted_round_robin':
            return self.weighted_selection(healthy_nodes)

Caching Strategies

Implement caching to reduce load on backend systems and improve response times:

class HighAvailabilityCache:
    def __init__(self, cache_nodes):
        self.cache_nodes = cache_nodes
        self.consistent_hash = ConsistentHash(cache_nodes)

    def get(self, key):
        """Get value from cache with failover"""
        primary_node = self.consistent_hash.get_node(key)
        try:
            return primary_node.get(key)
        except CacheNodeException:
            # Try other nodes
            for node in self.cache_nodes:
                if node != primary_node:
                    try:
                        return node.get(key)
                    except CacheNodeException:
                        continue
            raise CacheUnavailableException("All cache nodes failed")

Integration with Modern Architectures

Microservices High Availability

Distributed microservices require sophisticated HA patterns including service mesh, circuit breakers, and distributed tracing.

Cloud-native High Availability

Cloud platforms provide managed HA services including auto-scaling, load balancing, and automated failover.

Edge Computing Considerations

Edge deployments require HA strategies that account for limited connectivity and resource constraints.

Advanced High Availability Techniques

Chaos Engineering

Proactively introduces failures to test system resilience:

class ChaosEngineering:
    def __init__(self, system):
        self.system = system
        self.chaos_scenarios = [
            'network_partition',
            'node_failure',
            'high_load',
            'storage_failure'
        ]

    def run_chaos_experiment(self, scenario):
        """Run chaos experiment to test system resilience"""
        baseline_metrics = self.system.get_metrics()

        try:
            self.inject_chaos(scenario)
            time.sleep(300)  # 5 minutes

            recovery_metrics = self.system.get_metrics()
            return self.analyze_impact(baseline_metrics, recovery_metrics)
        finally:
            self.restore_normal_operation()

Self-healing Systems

Automatically detect and repair failures without human intervention:

class SelfHealingSystem:
    def __init__(self, system):
        self.system = system
        self.healing_actions = {
            'high_memory': self.restart_services,
            'network_failure': self.switch_network_interface,
            'disk_full': self.cleanup_old_logs
        }

    def monitor_and_heal(self):
        """Monitor system and apply healing actions"""
        issues = self.detect_issues()
        for issue in issues:
            if issue.type in self.healing_actions:
                self.healing_actions[issue.type](issue)

Challenges and Solutions

Complexity Management

High availability systems introduce complexity that must be managed through careful design, documentation, and testing.

Cost Considerations

Implementing HA requires additional resources and infrastructure, requiring careful cost-benefit analysis.

Testing Challenges

Comprehensive testing of HA systems requires sophisticated test environments and failure injection capabilities.

Related Concepts

High availability integrates closely with fault tolerance, distributed systems design, and disaster recovery strategies. It supports load balancing and distributed computing architectures in industrial environments.

Modern high availability approaches increasingly leverage automation, machine learning for predictive failure detection, and cloud-native architectures for simplified management and scaling.
