Distributed Systems Design

Summary

Distributed systems design is the architectural discipline of creating software systems that run across multiple interconnected computers, coordinating their activities to appear as a single coherent system to users. In industrial environments, distributed systems design enables scalable, fault-tolerant architectures that can handle massive sensor data streams, support real-time process control, and provide resilient infrastructure for mission-critical manufacturing intelligence and operational analytics applications.

Understanding Distributed Systems Design Fundamentals

Distributed systems design addresses the fundamental challenges of building reliable, scalable, and maintainable systems across multiple computing nodes. Unlike monolithic architectures, distributed systems must handle network failures, data consistency issues, and the complexity of coordinating activities across geographically dispersed components.

In industrial contexts, distributed systems design becomes crucial when organizations need to integrate data from multiple facilities, support real-time decision-making across diverse operational systems, and maintain continuity during equipment failures or network disruptions. The design principles ensure that critical industrial operations can continue even when individual system components fail.

Core Design Principles

Scalability

Systems must handle increasing loads by adding more nodes rather than upgrading individual components, supporting the growing data volumes and processing requirements of modern industrial operations.

Fault Tolerance

Individual component failures should not compromise overall system functionality, ensuring continuous operation of critical industrial processes.

Consistency

Data remains consistent across all nodes despite concurrent updates and network partitions, maintaining data integrity for operational decision-making.

Availability

Systems remain operational and responsive even during partial failures, supporting continuous industrial monitoring and control requirements.

Distributed Systems Architecture Patterns

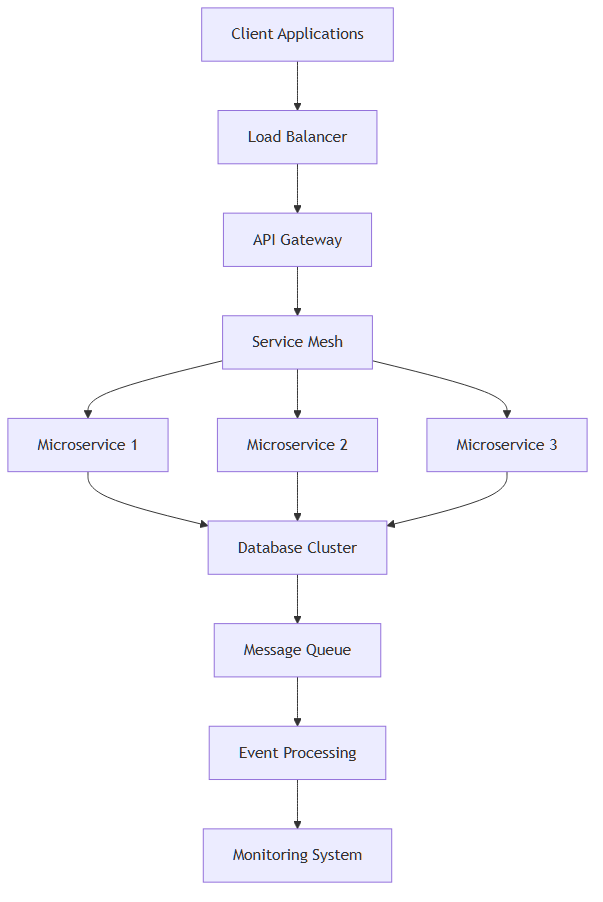

Diagram

Design Patterns for Industrial Applications

Master-Slave Architecture

A primary node coordinates activities while slave nodes execute tasks, commonly used in industrial control systems where centralized coordination is essential.

Peer-to-Peer Architecture

All nodes have equal capabilities and can communicate directly, useful for distributed sensor networks and collaborative industrial analytics.

Microservices Architecture

Applications decompose into small, independent services that communicate through well-defined APIs, enabling flexible and maintainable industrial software systems.

Event-Driven Architecture

Systems react to events and state changes, ideal for industrial environments where real-time responses to operational conditions are critical.

Implementation Strategies

Service Discovery

Distributed systems implement dynamic service discovery to enable components to find and communicate with each other:

```python import consul class ServiceDiscovery: def __init__(self): self.consul = consul.Consul() def register_service(self, service_name, service_id, address, port): """Register industrial service with discovery system""" self.consul.agent.service.register( name=service_name, service_id=service_id, address=address, port=port, check=consul.Check.http(f"http://{address}:{port}/health", interval="10s") ) def discover_service(self, service_name): """Discover available service instances""" services = self.consul.health.service(service_name, passing=True) return [(s['Service']['Address'], s['Service']['Port']) for s in services[1]] ```

Configuration Management

Centralized configuration management ensures consistent behavior across distributed components while enabling dynamic reconfiguration.

Circuit Breaker Pattern

Prevents cascading failures by automatically disabling failing services and providing fallback mechanisms.

Data Management in Distributed Systems

Distributed Databases

Industrial systems often use distributed databases to handle large-scale data storage and ensure data availability across multiple locations.

Data Replication

Critical operational data is replicated across multiple nodes to ensure availability and enable fast local access.

Consistency Models

Different consistency models balance performance and data accuracy requirements:

- Strong consistency for critical operational data

- Eventual consistency for analytical and reporting systems

- Causal consistency for related operational events

Communication Patterns

Synchronous Communication

Direct request-response patterns for real-time industrial control systems requiring immediate responses.

Asynchronous Messaging

Message queues and event streaming enable decoupled communication between system components, supporting flexible industrial data processing pipelines.

Publish-Subscribe Patterns

Enable efficient distribution of sensor data and operational events to multiple consuming systems.

Best Practices for Industrial Distributed Systems

1. Design for Observability

- Implement comprehensive logging and monitoring

- Use distributed tracing for complex request flows

- Monitor system health and performance metrics

2. Implement Graceful Degradation

- Design fallback mechanisms for service failures

- Prioritize critical functionality during resource constraints

- Implement circuit breakers and timeouts

3. Ensure Security

- Implement authentication and authorization across all services

- Use secure communication protocols

- Regular security audits and vulnerability assessments

4. Plan for Disaster Recovery

- Implement backup and recovery procedures

- Test disaster recovery scenarios regularly

- Design for geographic distribution of critical components

Fault Tolerance Strategies

Replication

Critical components are replicated across multiple nodes to ensure availability during failures:

```python class ReplicationManager: def __init__(self, replication_factor=3): self.replication_factor = replication_factor self.nodes = [] def write_data(self, key, value): """Write data to multiple replicas""" successful_writes = 0 for node in self.select_replicas(key): try: node.write(key, value) successful_writes += 1 except NodeException: continue return successful_writes >= (self.replication_factor // 2) + 1 ```

Consensus Algorithms

Distributed systems use consensus algorithms like Raft or Paxos to ensure agreement across nodes despite failures.

Bulkhead Pattern

Isolates different system components to prevent failures from cascading across the entire system.

Performance Optimization

Load Balancing

Distributes requests across multiple nodes to optimize resource utilization and response times.

Caching Strategies

Implement distributed caching to reduce database load and improve response times for frequently accessed data.

Data Locality

Optimize data placement to minimize network communication and improve access performance.

Integration with Industrial Systems

SCADA System Integration

Distributed systems integrate with SCADA systems to provide scalable data processing and analytics capabilities.

MES Integration

Manufacturing execution systems leverage distributed architectures to support multi-facility operations and real-time production optimization.

IoT Device Management

Distributed systems manage and process data from thousands of industrial IoT devices across multiple facilities.

Cloud-native Distributed Systems

Container Orchestration

Kubernetes and similar platforms provide automated deployment, scaling, and management of distributed industrial applications.

Service Mesh

Infrastructure layer that handles service-to-service communication, providing security, observability, and traffic management.

Serverless Computing

Event-driven computing model that automatically scales based on demand, suitable for variable industrial workloads.

Advanced Design Patterns

CQRS (Command Query Responsibility Segregation)

Separates read and write operations to optimize performance and scalability for different industrial use cases.

Event Sourcing

Stores system state changes as a sequence of events, providing complete audit trails and enabling complex analytical queries.

Saga Pattern

Manages distributed transactions across multiple services, ensuring data consistency in complex industrial workflows.

Challenges and Solutions

Network Partitions

Systems must continue operating when network connectivity is lost between nodes, requiring careful design of partition tolerance mechanisms.

Distributed Debugging

Debugging distributed systems requires specialized tools and techniques to trace issues across multiple components.

Operational Complexity

Managing distributed systems requires sophisticated monitoring, deployment, and operational procedures.

Related Concepts

Distributed systems design integrates with distributed computing, fault tolerance, and high availability strategies. It supports microservices architecture patterns and enables load balancing across industrial data processing systems.

Modern distributed systems design increasingly leverages container orchestration and cloud-native architecture patterns to simplify deployment and management of complex industrial applications.
