Data Collection Agent

Summary

A data collection agent is a software component that automatically gathers, processes, and transmits data from various sources to centralized systems for analysis and storage. In industrial data processing and Model Based Design (MBD) environments, data collection agents enable continuous monitoring of equipment, sensors, and processes by providing reliable, efficient data acquisition capabilities that bridge the gap between operational systems and analytical platforms.

Back

Example H2

Understanding Data Collection Agent Fundamentals

Data collection agents serve as intermediaries between data sources and data processing systems, handling the complexities of data acquisition, protocol translation, and reliable data transmission. These agents operate autonomously, collecting data from multiple sources including sensors, control systems, databases, and external APIs.

Industrial environments require robust data collection agents that can handle diverse communication protocols, varying data formats, and challenging operational conditions. These agents must provide consistent data flow while managing network interruptions, protocol variations, and system maintenance windows.

Core Components of Data Collection Agents

Data Source Connectors: Interfaces for connecting to various data sources and protocols
Data Processing Engine: Transformation, filtering, and validation capabilities
Buffer Management: Temporary storage for handling network interruptions and data bursts
Protocol Translation: Converting between different data formats and communication protocols
Transmission Module: Reliable data delivery to target systems

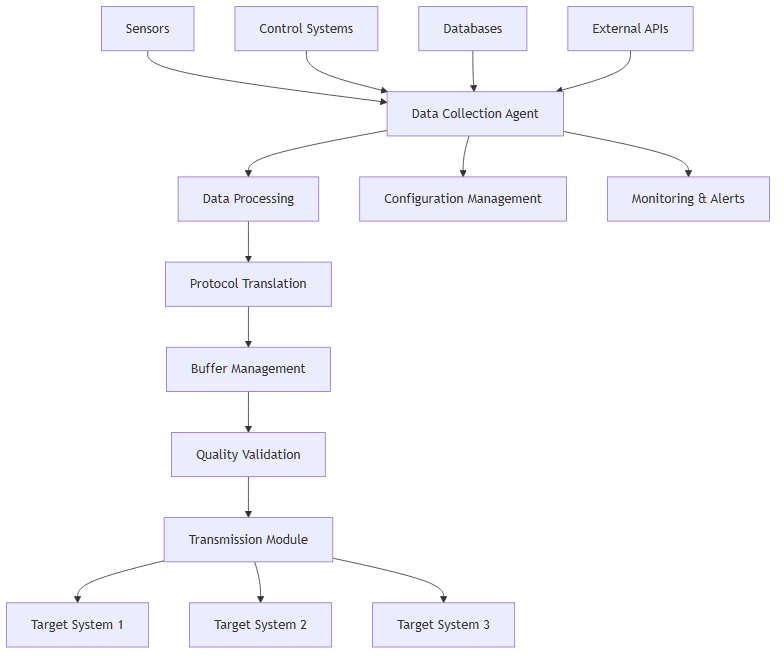

Data Collection Agent Architecture

Applications in Industrial Data Processing

Manufacturing Data Collection

Industrial agents collect real-time data from production equipment, quality control systems, and environmental sensors to support manufacturing intelligence and process optimization.

Process Control Integration

Agents interface with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems to gather process variables and control parameters.

Model Based Design Support

MBD environments use collection agents to gather operational data for model validation, parameter estimation, and design optimization workflows.

Predictive Maintenance

Agents continuously collect vibration, temperature, and other condition monitoring data to support predictive maintenance algorithms and condition-based maintenance strategies.

Implementation Example

```python # Example data collection agent implementation import asyncio import json import logging from datetime import datetime from typing import Dict, List, Optional, Any from dataclasses import dataclass, asdict from queue import Queue import requests @dataclass class DataPoint: timestamp: datetime source_id: str value: Any quality: str metadata: Dict[str, Any] class DataCollectionAgent: def __init__(self, agent_id: str, config: Dict[str, Any]): self.agent_id = agent_id self.config = config self.data_buffer = Queue(maxsize=10000) self.is_running = False self.logger = logging.getLogger(f"agent_{agent_id}") async def start(self): """Start the data collection agent""" self.is_running = True self.logger.info(f"Starting data collection agent {self.agent_id}") # Start collection tasks tasks = [ asyncio.create_task(self.collect_sensor_data()), asyncio.create_task(self.collect_system_data()), asyncio.create_task(self.process_data_buffer()), asyncio.create_task(self.transmit_data()) ] await asyncio.gather(*tasks) async def collect_sensor_data(self): """Collect data from sensor sources""" while self.is_running: try: for sensor_config in self.config.get('sensors', []): data_point = await self.read_sensor(sensor_config) if data_point: self.data_buffer.put(data_point) await asyncio.sleep(self.config.get('sensor_interval', 1)) except Exception as e: self.logger.error(f"Error collecting sensor data: {e}") async def collect_system_data(self): """Collect data from system sources""" while self.is_running: try: for system_config in self.config.get('systems', []): data_points = await self.read_system(system_config) for data_point in data_points: self.data_buffer.put(data_point) await asyncio.sleep(self.config.get('system_interval', 5)) except Exception as e: self.logger.error(f"Error collecting system data: {e}") async def read_sensor(self, sensor_config: Dict) -> Optional[DataPoint]: """Read data from individual sensor""" # Simulate sensor reading # In real implementation, this would interface with actual sensor protocols return DataPoint( timestamp=datetime.now(), source_id=sensor_config['id'], value=42.5, # Simulated value quality="good", metadata={"unit": sensor_config.get('unit', 'unknown')} ) async def read_system(self, system_config: Dict) -> List[DataPoint]: """Read data from system sources""" # Simulate system data collection # In real implementation, this would interface with databases, APIs, etc. return [ DataPoint( timestamp=datetime.now(), source_id=f"{system_config['id']}_metric1", value=100.0, quality="good", metadata={"system": system_config['id']} ) ] async def process_data_buffer(self): """Process data in buffer""" while self.is_running: try: processed_data = [] for _ in range(min(100, self.data_buffer.qsize())): if not self.data_buffer.empty(): data_point = self.data_buffer.get() processed_point = self.validate_and_transform(data_point) if processed_point: processed_data.append(processed_point) if processed_data: await self.store_processed_data(processed_data) await asyncio.sleep(1) except Exception as e: self.logger.error(f"Error processing data buffer: {e}") def validate_and_transform(self, data_point: DataPoint) -> Optional[DataPoint]: """Validate and transform data point""" # Implement data validation and transformation logic if data_point.quality == "good": return data_point return None async def store_processed_data(self, data_points: List[DataPoint]): """Store processed data for transmission""" # In real implementation, this would store to persistent buffer pass async def transmit_data(self): """Transmit collected data to target systems""" while self.is_running: try: # Implement data transmission logic # This could be HTTP, MQTT, Kafka, etc. await asyncio.sleep(5) except Exception as e: self.logger.error(f"Error transmitting data: {e}") def stop(self): """Stop the data collection agent""" self.is_running = False self.logger.info(f"Stopping data collection agent {self.agent_id}") ```

Key Features and Capabilities

Protocol Support

Modern data collection agents support multiple communication protocols including:

- Industrial Protocols: OPC-UA, Modbus, DNP3, BACnet

- Network Protocols: HTTP/HTTPS, MQTT, TCP/UDP

- Database Protocols: SQL, NoSQL, time-series databases

- Message Queues: Kafka, RabbitMQ, Azure Service Bus

Data Processing

- Real-time Filtering: Removing noise and invalid data points

- Data Transformation: Converting units, scaling, and normalization

- Aggregation: Computing statistics and summaries

- Quality Assessment: Evaluating data reliability and accuracy

Reliability Features

- Buffering: Temporary storage during network outages

- Retry Logic: Automatic retransmission of failed data

- Failover: Switching to backup systems during failures

- Health Monitoring: Self-diagnostics and status reporting

Best Practices

Implement Robust Error Handling: Handle network failures, protocol errors, and data quality issues gracefully
Use Appropriate Buffering: Size buffers based on expected data volumes and network reliability
Monitor Agent Health: Implement comprehensive monitoring and alerting for agent status
Secure Data Transmission: Use encryption and authentication for sensitive industrial data
Optimize Resource Usage: Manage CPU, memory, and network resources efficiently

Performance Considerations

Data collection agents must handle various performance requirements:

- High Throughput: Processing thousands of data points per second

- Low Latency: Minimizing delay between data collection and transmission

- Resource Efficiency: Operating within limited CPU and memory constraints

- Scalability: Supporting increasing numbers of data sources

Security Considerations

Industrial data collection agents require robust security measures:

- Authentication: Verifying agent identity and authorization

- Encryption: Protecting data in transit and at rest

- Access Control: Limiting agent permissions and capabilities

- Audit Logging: Tracking agent activities and data access

Related Concepts

Data collection agents integrate with industrial data collection, sensor data processing, and real-time data ingestion. They also support metrics collection agent patterns and industrial data processing pipelines.

Data collection agents provide the foundation for industrial data acquisition, enabling organizations to gather comprehensive operational data from diverse sources while ensuring reliability, security, and performance. These agents are essential components in modern industrial data processing architectures that support analytics, monitoring, and optimization initiatives.
