Complex Event Processing

Summary

Complex Event Processing (CEP) is a computational paradigm that analyzes and correlates multiple data streams in real-time to identify meaningful patterns, trends, and relationships among events. In industrial data processing and Model Based Design (MBD) environments, CEP enables organizations to detect critical situations, predict equipment failures, and trigger automated responses by processing high-volume event streams from sensors, control systems, and operational processes.

Understanding Complex Event Processing Fundamentals

Complex Event Processing extends beyond simple event handling by analyzing relationships between multiple events across time and space. It identifies patterns that span multiple events, correlates data from different sources, and generates derived events that represent higher-level insights about system behavior.

CEP systems distinguish between simple events (individual data points) and complex events (patterns or correlations identified from multiple simple events). This capability enables industrial systems to detect conditions like equipment degradation, process anomalies, or safety violations that manifest through combinations of seemingly unrelated events.

Core Components of Complex Event Processing

  1. Event Stream Ingestion: Receiving and routing high-volume event streams from multiple sources
  2. Pattern Detection: Identifying meaningful patterns and correlations across event streams
  3. Event Correlation: Linking related events across different data sources and time windows
  4. Rule Engine: Applying business logic to detected patterns for decision-making
  5. Action Triggering: Executing automated responses based on complex event patterns

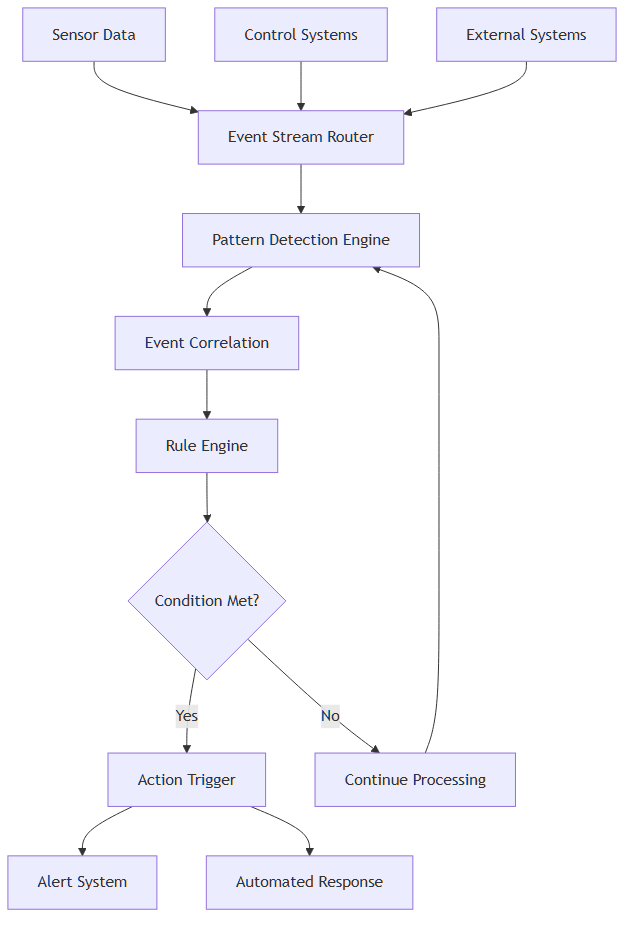

Complex Event Processing Architecture

Diagram

Applications in Industrial Data Processing

Predictive Maintenance

CEP analyzes vibration, temperature, and pressure data patterns to predict equipment failures before they occur, enabling proactive maintenance scheduling.

Process Optimization

Manufacturing systems use CEP to identify inefficiencies by correlating production rates, energy consumption, and quality metrics across multiple production lines.

Safety Monitoring

Industrial safety systems employ CEP to detect dangerous conditions by analyzing multiple sensor inputs and operational parameters simultaneously.

Model Based Design Validation

MBD environments use CEP to validate simulation models by comparing predicted event patterns with real-world operational data streams.

Implementation Approaches

```python # Example CEP pattern detection from datetime import datetime, timedelta from typing import List, Dict, Optional from dataclasses import dataclass @dataclass class Event: timestamp: datetime source: str event_type: str value: float metadata: Dict class CEPProcessor: def __init__(self): self.event_window = timedelta(minutes=10) self.event_buffer = [] self.patterns = [] def add_event(self, event: Event): self.event_buffer.append(event) self.cleanup_old_events() self.detect_patterns() def cleanup_old_events(self): cutoff_time = datetime.now() - self.event_window self.event_buffer = [e for e in self.event_buffer if e.timestamp > cutoff_time] def detect_patterns(self): # Temperature spike followed by vibration increase temp_events = [e for e in self.event_buffer if e.event_type == 'temperature' and e.value > 80] vib_events = [e for e in self.event_buffer if e.event_type == 'vibration' and e.value > 0.5] for temp_event in temp_events: for vib_event in vib_events: if (vib_event.timestamp > temp_event.timestamp and vib_event.timestamp - temp_event.timestamp < timedelta(minutes=5)): self.trigger_alert("Equipment overheating pattern detected") def trigger_alert(self, message: str): print(f"CEP Alert: {message} at {datetime.now()}") ```

Event Pattern Types

CEP systems can detect various types of patterns:

Temporal Patterns

- Sequence: Events occurring in a specific order

- Timing: Events happening within defined time windows

- Frequency: Events occurring at specific rates or intervals

Spatial Patterns

- Location-based: Events from specific geographical areas or equipment zones

- Proximity: Events from nearby sensors or related systems

Threshold Patterns

- Trending: Gradual increases or decreases in values

- Spike Detection: Sudden changes in measured parameters

- Absence: Missing events that should have occurred

Performance Considerations

CEP systems must handle several performance challenges:

- High Throughput: Processing millions of events per second from industrial systems

- Low Latency: Detecting patterns and triggering responses within milliseconds

- Memory Management: Efficiently managing event windows and pattern state

- Scalability: Handling increasing event volumes through distributed processing

Best Practices

  1. Define Clear Event Schemas: Establish consistent event structures for reliable pattern detection
  2. Optimize Window Sizes: Balance pattern detection accuracy with system performance
  3. Implement Backpressure Handling: Manage situations where events arrive faster than processing capacity
  4. Use Sliding Windows: Continuously update pattern detection as new events arrive
  5. Monitor Pattern Effectiveness: Track false positives and negatives to refine detection rules

Integration with Industrial Systems

CEP systems integrate with various industrial technologies:

- SCADA Systems: Processing alarm and measurement data

- Manufacturing Execution Systems (MES): Correlating production and quality events

- Enterprise Resource Planning (ERP): Linking operational events with business processes

- Industrial IoT Platforms: Processing sensor data from connected equipment

Related Concepts

Complex Event Processing integrates with stream processing, real-time analytics, and event driven architecture. It also supports anomaly detection and distributed event processing patterns.

Complex Event Processing provides the foundation for intelligent industrial systems that can automatically detect critical conditions, optimize operations, and respond to complex situations in real-time. This capability enables organizations to move beyond reactive monitoring to proactive, intelligent automation that improves safety, efficiency, and operational excellence.
