Compacted Topic

Summary

A compacted topic is a specialized message stream or data structure that retains only the latest value for each unique key, automatically removing outdated records to optimize storage efficiency while maintaining current data state. In industrial applications, compacted topics are essential for managing equipment status data, configuration parameters, and state information in Industrial Internet of Things systems, Real-time Analytics platforms, and Model Based Design environments where maintaining current system state efficiently is critical for operational decision-making.

Understanding Topic Compaction

Topic compaction is a log cleanup policy that maintains the most recent value for each unique key in a message stream while removing older, superseded values. Unlike traditional time-based retention policies that delete data after a specified time period, compaction preserves the current state of each data entity indefinitely while continuously optimizing storage usage.

This approach is particularly valuable in industrial environments where the current state of equipment, processes, or configurations is more important than historical changes, but where the complete current state must be maintained for operational continuity. Compaction ensures that consumers can always retrieve the latest known value for any key without storing redundant historical data.

Core Mechanisms and Operations

Compaction Process

The compaction process operates through several key mechanisms:

- Key-based Deduplication: Identifying records with identical keys and retaining only the most recent value

- Log Segment Processing: Processing data in segments to maintain system performance during compaction

- Offset Management: Maintaining proper message ordering and offset sequences after compaction

- Tombstone Handling: Managing deletion markers (tombstones) to remove keys from the compacted log

Storage Optimization

Compaction provides several storage benefits:

  1. Space Efficiency: Reducing storage requirements by eliminating redundant data
  2. Faster Recovery: Enabling faster system recovery by maintaining only current state data
  3. Improved Performance: Reducing data scan times for state reconstruction operations
  4. Simplified Maintenance: Minimizing storage management overhead for long-running systems

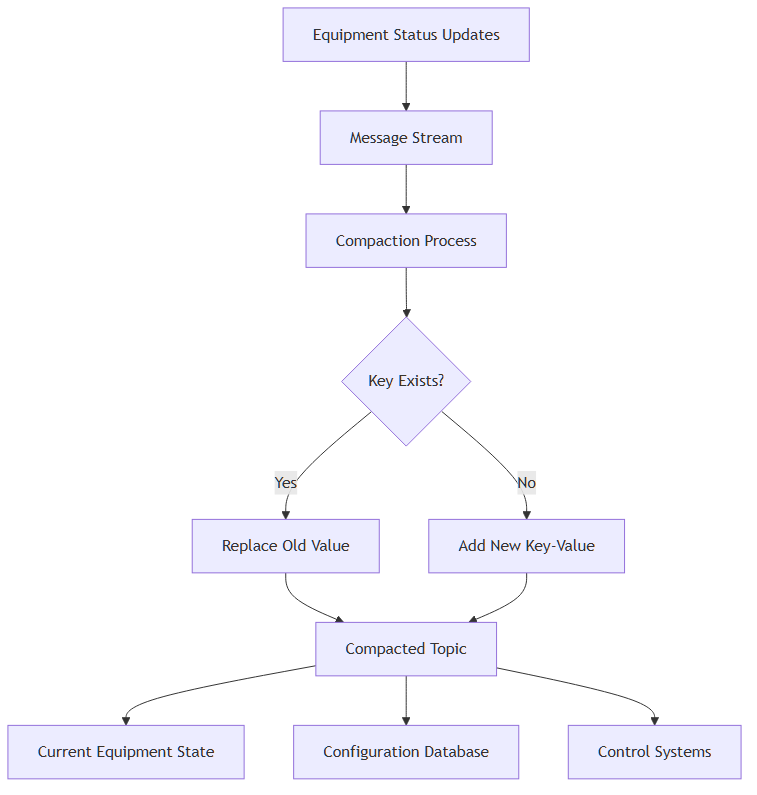

Diagram

Applications and Use Cases

Equipment State Management

Compacted topics excel in equipment monitoring scenarios:

- Equipment Status Tracking: Maintaining current operational status of industrial equipment without storing redundant state changes

- Configuration Management: Storing current equipment configurations while automatically purging outdated settings

- Alarm State Management: Tracking current alarm conditions across industrial systems

- Maintenance Status: Maintaining current maintenance schedules and equipment availability status

Process Control and Monitoring

In industrial process control, compacted topics support:

- Setpoint Management: Storing current process setpoints while eliminating historical setpoint changes

- Process Variable State: Maintaining current values of key process variables for control system reference

- Safety System Status: Tracking current safety system states and interlocks

- Quality Control Parameters: Storing current quality control settings and specifications

Model Based Design Integration

Compacted topics support MBD workflows by:

- Design Parameter State: Maintaining current design parameters while eliminating outdated versions

- Simulation Configuration: Storing current simulation settings and model configurations

- Validation Status: Tracking current validation and verification status for design components

- Design Collaboration State: Maintaining current collaboration state and user assignments

Implementation Patterns

Key Design Strategies

Effective compacted topic implementation requires careful key design:

- Hierarchical Keys: Using structured keys that reflect equipment or system hierarchies

- Semantic Keys: Designing keys that clearly identify the data entity and context

- Stable Keys: Ensuring key formats remain consistent over time to maintain compaction effectiveness

- Namespace Management: Using appropriate namespacing to prevent key collisions

Data Modeling

Compacted topics require specific data modeling approaches:

  1. State-oriented Modeling: Designing data structures that represent current state rather than events
  2. Idempotent Updates: Ensuring that repeated updates with the same value don't create issues
  3. Schema Evolution: Planning for schema changes while maintaining compaction compatibility
  4. Tombstone Strategy: Implementing appropriate deletion strategies using null values or tombstone markers

Performance Considerations

Compaction Efficiency

Several factors affect compaction performance:

- Compaction Frequency: Balancing compaction overhead with storage efficiency

- Segment Size: Optimizing log segment sizes for efficient compaction processing

- Key Distribution: Ensuring even key distribution to maximize compaction effectiveness

- Update Patterns: Designing update patterns that work efficiently with compaction policies

System Performance Impact

Compaction affects overall system performance:

- Background Processing: Managing compaction as a background process to minimize impact on real-time operations

- Resource Utilization: Balancing CPU and I/O resources between compaction and operational workloads

- Memory Management: Optimizing memory usage during compaction operations

- Network Efficiency: Minimizing network overhead during compacted data distribution

Operational Best Practices

Configuration Management

  1. Compaction Policies: Implementing appropriate compaction policies based on data characteristics
  2. Monitoring Setup: Establishing monitoring for compaction effectiveness and performance
  3. Backup Strategies: Ensuring backup procedures work correctly with compacted topics
  4. Recovery Planning: Developing recovery procedures that account for compacted data structures
  5. Performance Tuning: Optimizing compaction parameters for specific workload characteristics

Data Governance

Effective governance requires attention to:

- Data Retention: Balancing compaction with regulatory data retention requirements

- Audit Considerations: Ensuring audit trails are maintained appropriately with compacted data

- Change Management: Managing changes to compaction policies and configurations

- Quality Assurance: Implementing data quality checks for compacted topics

Integration with Industrial Systems

Message Streaming Platforms

Compacted topics integrate with various messaging systems:

- Apache Kafka: Native support for log compaction in Kafka topics

- Apache Pulsar: Compaction capabilities for message deduplication

- Azure Event Hubs: Compaction-like features for state management

- AWS Kinesis: Compaction patterns using Kinesis Data Streams

Industrial Communication Protocols

Compacted topics work with industrial protocols:

- MQTT: Using retained messages for state distribution similar to compacted topics

- OPC UA: Implementing state management patterns for industrial data

- Modbus: Maintaining current register values with compaction-like efficiency

Advanced Features and Capabilities

Conditional Compaction

Advanced compaction implementations provide:

- Conditional Logic: Applying compaction rules based on data content or metadata

- Time-based Policies: Combining compaction with time-based retention for hybrid approaches

- Size-based Triggers: Triggering compaction based on storage size thresholds

- Custom Compaction Logic: Implementing domain-specific compaction algorithms

Multi-tier Compaction

Sophisticated systems implement multiple compaction tiers:

- Real-time Compaction: Immediate compaction for frequently updated keys

- Batch Compaction: Periodic compaction for less frequently updated data

- Archive Compaction: Long-term compaction strategies for historical state preservation

- Cross-system Compaction: Coordinating compaction across distributed systems

Challenges and Considerations

Technical Challenges

Several challenges must be addressed in compacted topic implementations:

- Consistency Guarantees: Ensuring data consistency during compaction operations

- Ordering Preservation: Maintaining proper message ordering semantics after compaction

- Duplicate Handling: Managing duplicate keys that may arrive during compaction

- Error Recovery: Implementing robust error recovery for failed compaction operations

Operational Considerations

Key operational considerations include:

- Monitoring Complexity: Implementing comprehensive monitoring for compacted topic health

- Troubleshooting: Developing troubleshooting procedures for compaction-related issues

- Capacity Planning: Planning storage capacity with consideration for compaction efficiency

- Performance Optimization: Tuning compaction parameters for optimal performance

Related Concepts

Compacted topics are closely related to several other data management concepts:

- Event Sourcing: The broader pattern of maintaining system state through event streams

- State Management: General approaches to maintaining application and system state

- Data Deduplication: The broader category of techniques for eliminating redundant data

Compacted topics represent an essential pattern for efficient state management in industrial systems, providing the optimal balance between data accessibility, storage efficiency, and system performance required for modern industrial applications.
