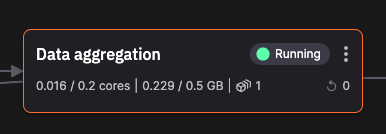

Data aggregation

This service subscribes to the enriched-click-data topic. Any data received is aggregated, and the results written to Redis Cloud. These aggregations are then consumed by a Streamlit dashboard (Real-time dashboard) for visualization and analysis. RocksDB is used to hold state for the aggregation calculations.

The real-time dashboard displays:

  • Visitors in the last 15 minutes
  • Sessions in the last 8 hours
  • Devices connected right now (number and type)
  • Top 10 viewed pages in the last hour
  • Latest visitor details
  • Category popularity in the last hour
  • State machine log (useful for troubleshooting)
  • Raw data view

Data aggregation

Last hour of data

For the last hour of data the data format is:

columns = {
    "timestamp": pd.Series(dtype='datetime64[ns]'),
    "original_timestamp": pd.Series(dtype='int'),
    "userId": pd.Series(dtype='str'),
    "ip": pd.Series(dtype='str'),
    "userAgent": pd.Series(dtype='str'),
    "productId": pd.Series(dtype='str'),
    "category": pd.Series(dtype='str'),
    "title": pd.Series(dtype='str'),
    "gender": pd.Series(dtype='str'),
    "country": pd.Series(dtype='str'),
    "deviceType": pd.Series(dtype='str'),
    "age": pd.Series(dtype='int'),
    "birthdate": pd.Series(dtype='datetime64[ns]'),
    "datetime": pd.Series(dtype='datetime64[ns]')
}

initial_df = pd.DataFrame(columns)

For each new dataframe received, the following is performed in the data handler routine:

  1. last_hour_read is read from the database (RocksDB).
  2. Dataframe is concatenated on the accumulated data in last_hour_data.
  3. last_hour_read is written back to the database (RocksDB).
def on_dataframe_handler(stream_consumer: qx.StreamConsumer, df: pd.DataFrame):
    ...
    # Append data to last_hour_data and save to database
    last_hour_data = db["last_hour_data"]
    last_hour_data = pd.concat([last_hour_data, df], ignore_index=True)
    db["last_hour_data"] = last_hour_data

Last eight hours

For the last eight hours of data, the data format is:

db["eight_hours_aggregation"] = pd.DataFrame(columns=["datetime", "userId", "count"])

For each new dataframe received, the following is performed in the data handler routine:

  1. eight_hours_aggregation is read from then database (RocksDB).
  2. Data is aggregated (every 30 minutes based on datetime and userId) to give a count of sessions for each datetime, for example, Datetime: 15:00, Count: 159.
  3. Concatenated onto eight_hours_aggregation.
  4. eight_hours_aggregation is written back to the database (RocksDB).
def on_dataframe_handler(stream_consumer: qx.StreamConsumer, df: pd.DataFrame):
    ...
    eight_hours_aggregation = db["eight_hours_aggregation"]
    aggregated = df.groupby([pd.Grouper(key='datetime', freq='30min'), 'userId']).size().reset_index(name='count')

    # Add df_copy to eight_hours_aggregation. If the datetime is the same, add both counts
    eight_hours_aggregation = (pd.concat([eight_hours_aggregation, aggregated])
                               .groupby(['datetime', 'userId']).sum().reset_index())
    db["eight_hours_aggregation"] = eight_hours_aggregation

Writing aggregations to Redis Cloud

Aggregations are sent to Redis Cloud using a background Thread that runs every one second. The data written to Redis Cloud is:

  • Last hour of data
  • Eight hours aggregation
  • Visits in last fifteen minutes
  • Products viewed in last hour
  • Visitor details for the last ten minutes
  • Popularity by category
  • Device popularity

This is done by the following code:

def send_data_to_redis():
    while True:
        try:
            # Append data and discard data older than 1 hour
            last_hour_data = db["last_hour_data"]
            one_hour = pd.to_datetime(pd.Timestamp.now()) - pd.Timedelta(hours=1)
            updated_last_hour_data = last_hour_data[last_hour_data["datetime"] > one_hour]

            if not updated_last_hour_data.equals(last_hour_data):
                last_hour_data = updated_last_hour_data
                db["last_hour_data"] = last_hour_data

            # This method uses its own rolling window, so we only have to pass the buffer
            aggregate_eight_hours(db["eight_hours_aggregation"].copy())

            # Get average visits in the last 15 minutes
            calculate_visits_last_15min(last_hour_data.copy())

            # Get top viewed productId in the last hour, keep only productId, category and count
            calculate_products_last_hour(last_hour_data.copy())

            # Get latest 10 visitors details (date and time, ip and country)
            calculate_10_last_visitors(last_hour_data.copy())

            # Get category popularity in the last hour
            calculate_category_popularity(last_hour_data.copy())

            # Get device type popularity in the last 10 minutes
            calculate_device_popularity(last_hour_data.copy())

            # Send all data
            sorted_data = last_hour_data.sort_values(by='datetime', ascending=False)
            r.set("raw_data", sorted_data.head(100).to_json())

            # Sleep for 1 second
            time.sleep(1)
        except Exception as e:
            print("Error in sender thread", e)

Note, there a simple Python function to calculate each of these items (see the code for more details).
